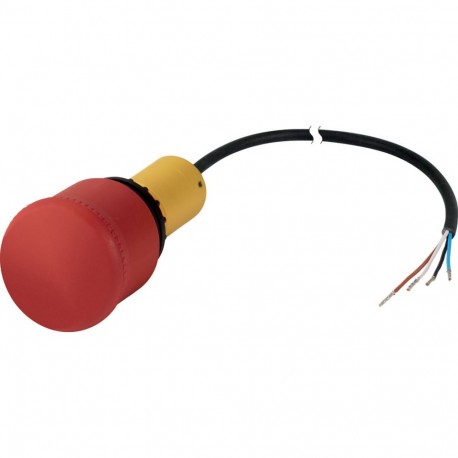

C22-PV-K11-P65 185175 Y7-185175 EATON ELECTRIC Emergency stop/emerg. switching off button, classic,mushroom,..
C22-PV-K11-P65
185175
Y7-185175
EATON - MOELLER
1 Pcs.
Automation > Emergency stop complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller C22-PV-K11-P65 emergency stop button serves as a manual command interface on control consoles to shut down machinery safely during emergencies. Panel builders install these devices to meet functional safety requirements across industrial sectors.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Unlocking method (EF001403): Pull-release
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as normally open contact (EF008256): 1
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
- Mounting method (EF000003): Built-in
- With lighting (EF003829): No
- Supply voltage lamp (EF006522): 0 V
- Hole diameter (EF000079): 22.5 mm
- Diameter cap (EF001423): 38 mm
More info
▲General specifications
UL
IEC/EN 60947-5-5
CE
CSA
CSA Class No.: 321103
CSA File No.: 165628
IEC/EN 60947-5-1
UL 508
CSA-C22.2 No. 14-10
CSA-C22.2 No. 94-91
CSA-C22.2 No. 94.2-07
CE marking
UL File No.: E340491
Features & Functions
Classical
Positive opening
General
IP66
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Contacts
1 failure per 17,000,000 swtching operations (statistically determined, at 17 V DC/7 mA: N/O contact
