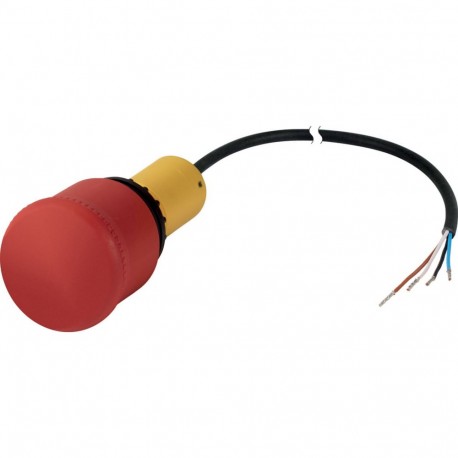

C22-PV-K02-P65 185170 Y7-185170 EATON ELECTRIC Emergency stop/emerg. switching off button,classic,mushroom,3..
C22-PV-K02-P65
185170
Y7-185170
EATON - MOELLER
1 Pcs.
Automation > Emergency stop complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller C22-PV-K02-P65 is an emergency stop/emerg. switching off button designed to quickly interrupt electrical circuits during hazardous conditions on industrial machinery. Operators rely on these classic mushroom actuators mounted on control panels to instantly halt automated processes and protect personnel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Unlocking method (EF001403): Pull-release
- Number of contacts as normally closed contact (EF008255): 2
- Number of contacts as normally open contact (EF008256): 0
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
- Mounting method (EF000003): Built-in
- With lighting (EF003829): No
- Supply voltage lamp (EF006522): 0 V
- Hole diameter (EF000079): 22.5 mm
- Diameter cap (EF001423): 38 mm
More info
▲General specifications
VDE 0660
CSA
IEC/EN 60947-5-5
UL
CSA Class No.: 321103
CSA File No.: 165628
IEC/EN 60947-5-1
UL 508
CSA-C22.2 No. 14-10
CSA-C22.2 No. 94-91
CSA-C22.2 No. 94.2-07
CE marking
UL File No.: E340491
Features & Functions
Classical
Positive opening
General
IP66
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
