C22-L-Y-24 121629 Y7-121629 EATON ELECTRIC C22-L-Y-24
C22-L-Y-24
121629
Y7-121629
EATON - MOELLER
1 Pcs.
Automation > Indicator light complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

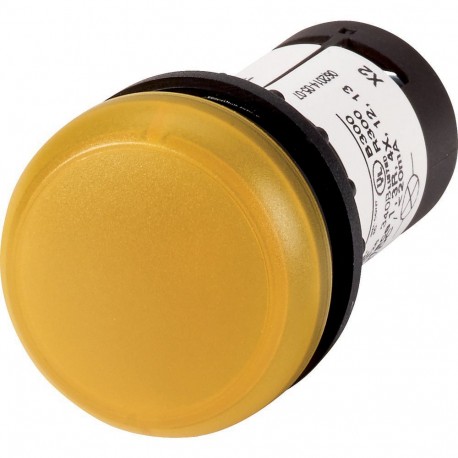

C22-L-Y-24 121629 Y7-121629 EATON ELECTRIC C22-L-Y-24 is an optical indicator device utilized on machine panels to provide clear visual status updates to operators in automated production lines.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of indicator lights (EF001965): 1
- Colour lens (EF000207): Yellow
- Type of lamp socket (EF008229): LED
- With light source (EF005905): Yes
- Rated operating voltage Ue (EF002418): 24 V
- Voltage type (EF000187): AC/DC
- Type of electric connection (EF003961): Screw connection
- Construction type lens (EF006253): Round
- Type of lens (EF008343): Flat
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Degree of protection (IP) (EF005474): IP67/IP69K
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
CSA-C22.2 No. 14-05 and 94-M91
UL Listed
UL Category Control No.: NKCR
CSA Class No.: 321103
CSA File No.: 165628
VDE 0660
IEC/EN 60947-5-1
UL File No.: E29184
CE marking
CSA certified
Features & Functions
Front ring
General
IP67/IP69K
2 x (0.5 - 1.5) mm², solid
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
