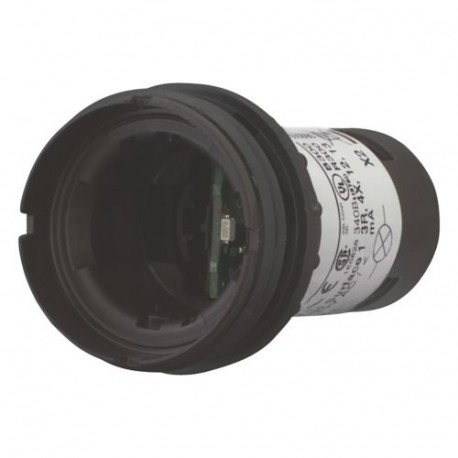

C22-L-XB-120 121643 Y7-121643 EATON ELECTRIC C22-L-XB-120

C22-L-XB-120

121643

Y7-121643

EATON - MOELLER

1 Pcs.

C22-L-XB-120 Eaton Moeller® series C22 Indicator light, Flat, Screw connection, Lens Without lens, LED Blue, 120 V AC Indicator light, Product range: RMQ Compact, Complete unit, Design: Flat, Connection type: Screw connection, Color Lens: Without lens, Color LED: Blue, Rated operational voltage LED: 120 V AC, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Ordering information: Lenses for indicator lights → accessories, Standards: IEC/EN 60947-5-1, VDE 0660

Automation > Indicator light complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series C22 Indicator light
Catalog Number
121643
Model Code
C22-L-XB-120
EAN
4015081194575
Product Length/Depth
56 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
CE marking
CSA File No.: 165628
CSA Class No.: 321103
UL 508
VDE 0660
UL Listed
UL File No.: E29184
IEC/EN 60947-5-1
CSA-C22.2 No. 14-05 and 94-M91
CSA certified
UL Category Control No.: NKCR
Catalog Notes
Lenses for indicator lights → accessories

Features & Functions

Bezel color
Other
Bezel material
Plastic
Design
Flat
Electric connection type
Screw connection
Fitted with:
Front ring
Light source
Lens color
Without hood
Light color
Blue

General

Connection to SmartWire-DT
No
Degree of protection
NEMA 4X, 13
IP67/IP69K
Mounting position
As required
Opening diameter
22.5 mm
Overvoltage category
III
Pollution degree
3
Product Category
RMQ Compact
Rated impulse withstand voltage (Uimp)
4000 V AC
Terminal capacity
2 x (0.5 - 1.5) mm², solid
2 x (0.5 - 1.5) mm², flexible with ferrules to DIN 46228
Tightening torque
0.8 Nm, Screw terminals
Type
Indicator lights
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) - min
120 V
Rated operational voltage (Ue) - max
120 V

ETIM for 121643 Low-voltage industrial controls and switchgear (EC000272)
Feature Name Feature Value
Number of indicator lights (EF001965) 1
Colour lens (EF000207) Without hood
Type of lamp socket (EF008229) LED
With light source (EF005905) Yes
Rated operating voltage Ue (EF002418) 120 V
Voltage type (EF000187) AC
Type of electric connection (EF003961) Screw connection
Construction type lens (EF006253) Round
Type of lens (EF008343) Flat
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Other
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 4X, 13

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
