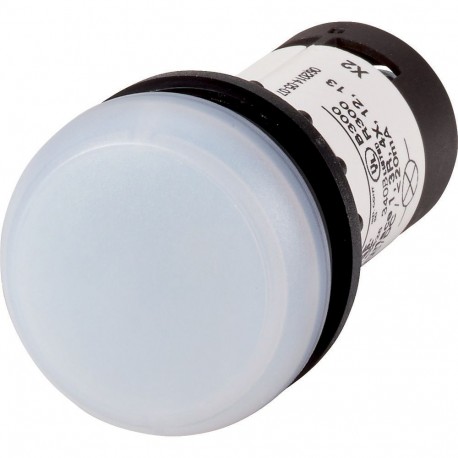

C22-L-W-230 Eaton Moeller® series C22 Indicator light, Flat, Screw connection, Lens white, LED white, 230 V AC Indicator light, Product range: RMQ Compact, Complete unit, Design: Flat, Connection type: Screw connection, Color Lens: white, Color LED: white, Rated operational voltage LED: 230 V AC, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, VDE 0660

Automation > Indicator light complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number C22-L-W-230 is an indicator light applied across industrial control panels to give operators reliable visual status information. These signaling units are a standard requirement in automated manufacturing setups for monitoring equipment conditions.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of indicator lights (EF001965): 1
  • Colour lens (EF000207): White
  • Type of lamp socket (EF008229): LED
  • With light source (EF005905): Yes
  • Rated operating voltage Ue (EF002418): 230 V
  • Voltage type (EF000187): AC
  • Type of electric connection (EF003961): Screw connection
  • Construction type lens (EF006253): Round
  • Type of lens (EF008343): Flat
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series C22 Indicator light
Catalog Number
121644
Model Code
C22-L-W-230
EAN
4015081194582
Product Length/Depth
56 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
CSA-C22.2 No. 14-05 and 94-M91
CSA certified
CSA File No.: 165628
IEC/EN 60947-5-1
VDE 0660
UL File No.: E29184
UL 508
CE marking
UL Category Control No.: NKCR
CSA Class No.: 321103
UL Listed

Features & Functions

Bezel color
Other
Bezel material
Plastic
Design
Flat
Electric connection type
Screw connection
Fitted with:
Front ring
Light source
Lens color
White
Light color
White

General

Connection to SmartWire-DT
No
Degree of protection
NEMA 4X, 13
IP67/IP69K
Mounting position
As required
Opening diameter
22.5 mm
Overvoltage category
III
Pollution degree
3
Product Category
RMQ Compact
Rated impulse withstand voltage (Uimp)
4000 V AC
Terminal capacity
2 x (0.5 - 1.5) mm², flexible with ferrules to DIN 46228
2 x (0.5 - 1.5) mm², solid
Tightening torque
0.8 Nm, Screw terminals
Type
Indicator lights
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) - min
230 V
Rated operational voltage (Ue) - max
230 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
