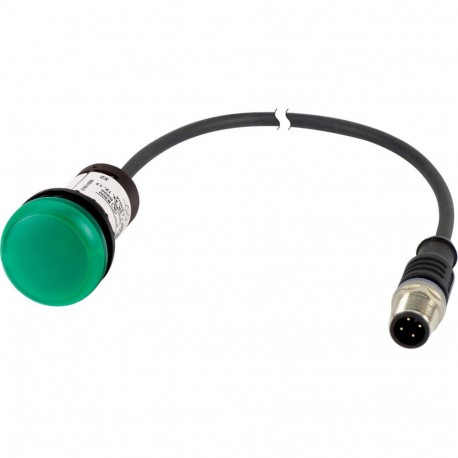

EATON - MOELLER C22-L-G-24-P5 C22-L-G-24-P5 181139 Y7-181139 EATON ELECTRIC Indicator light green 24v with cable 1m and M12A plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

C22-L-G-24-P5 181139 Y7-181139 EATON ELECTRIC Indicator light green 24v with cable 1m and M12A plug

C22-L-G-24-P5

181139

Y7-181139

EATON - MOELLER

1 Pcs.

Indicator light; green; 24v; with cable 1m and M12A plug C22-L-G-24-P5 Eaton Moeller® series C22 Indicator light, Flat, Cable (black) with M12A plug, 4 pole, 1 m, Lens green, LED green, 24 V AC/DC Indicator light, Product range: RMQ compact solution, Complete unit, Design: Flat, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 1 m, Color Lens: green, Color LED: green, Rated operational voltage LED: 24 V AC/DC, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, VDE 0660

Automation > Indicator light complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number C22-L-G-24-P5 is an indicator light engineered for optical signaling on machinery and control desks. Industrial automation systems use these visual aids to inform operators of specific machine cycles, active operating modes, or fault alerts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of indicator lights (EF001965): 1
  • Colour lens (EF000207): Green
  • Type of lamp socket (EF008229): LED
  • With light source (EF005905): Yes
  • Rated operating voltage Ue (EF002418): 24 V
  • Voltage type (EF000187): AC/DC
  • Construction type lens (EF006253): Round
  • Type of lens (EF008343): Flat
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic

More info

▲

General specifications

Product Name
Eaton Moeller® series C22 Indicator light
Catalog Number
181139
Model Code
C22-L-G-24-P5
EAN
4015081760787
Product Length/Depth
1061 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.055 kg
Certifications
IEC/EN 60947-5-1
CSA File No.: 165628
UL 508
UL Category Control No.: NKCR
VDE 0660
CSA Class No.: 321103
CSA
CE
CSA-C22.2 No. 14-05 and 94-M91
UL File No.: E29184
UL

Features & Functions

Bezel color
Other
Bezel material
Plastic
Design
M12A
Flat
Electric connection type
Other
Fitted with:
Light source
Front ring
Lens color
Green
Light color
Green

General

Cable length
1 m
Cable material
PUR
Connection to SmartWire-DT
No
Connection type
Cable (black) with M12A plug, 4 pole
Degree of protection
IP Other
NEMA Other
Mounting position
As required
Opening diameter
22.5 mm
Overvoltage category
III
Pollution degree
3
Product Category
RMQ compact solution
Rated impulse withstand voltage (Uimp)
800 V AC
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Tightening torque
1 Nm, Plug
2 Nm, Threaded ring
Type
Indicator lights
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
30 V
Rated operational voltage
24 V AC/DC (LED)
Rated operational voltage (Ue) - min
24 V
Rated operational voltage (Ue) - max
24 V
Short-circuit protection rating
Max. 4 A gG/gL, Fuse, Contacts

Actuator

Actuator diameter
4.7 mm
