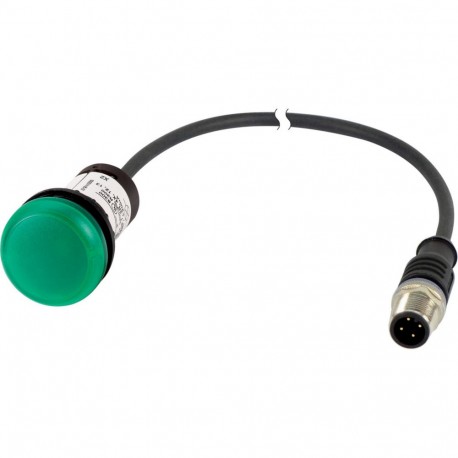

C22-L-G-24-P3 181620 Y7-181620 EATON ELECTRIC Indicator light green 24v with cable 0.5m and M12A plug
C22-L-G-24-P3
181620
Y7-181620
EATON - MOELLER
1 Pcs.
Automation > Indicator light complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
C22-L-G-24-P3 181620 Y7-181620 EATON ELECTRIC Indicator light green 24v with cable 0.5m and M12A plug is an industrial pilot lamp engineered to provide clear optical feedback on control panels, switchgear, and automated assembly machinery. Signal lights of this type allow operators to easily monitor system readiness, active processes, or safe operational states from a distance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of indicator lights (EF001965): 1
- Colour lens (EF000207): Green
- Type of lamp socket (EF008229): LED
- With light source (EF005905): Yes
- Rated operating voltage Ue (EF002418): 24 V
- Voltage type (EF000187): AC/DC
- Construction type lens (EF006253): Round
- Type of lens (EF008343): Flat
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
More info
▲General specifications
CSA-C22.2 No. 14-05 and 94-M91
IEC/EN 60947-5-1
UL
CSA
UL Category Control No.: NKCR
CE
CSA File No.: 165628
UL File No.: E29184
VDE 0660
UL 508
Features & Functions
Flat
Front ring
General
NEMA Other
2 Nm, Threaded ring
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
