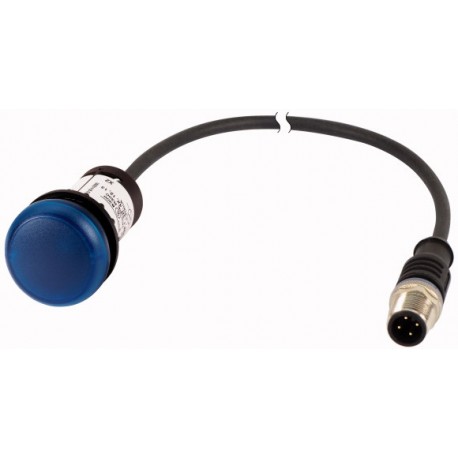

C22-L-B-24-P30 185124 EATON ELECTRIC Indicator light, classic, flat, blue, 24 V AC/DC, cable (black) with m8..
C22-L-B-24-P30
185124
EATON - MOELLER
1 Pcs.
Indicator light, classic, flat, blue, 24 V AC/DC, cable (black) with m8 plug, 4 pole, 0.2 m
Indicator light compact, 22 mm; Blue; 24 V AC/DC; cable 0.2 m and connector M8
Indicator light, Flat, Cable (black) with M8 plug, 4 pole, 0.2 m, Lens Blue, LED Blue, 24 V AC/DC
Indicator light, Product range: RMQ compact solution, Complete unit, Design: Flat, Connection type: Cable (black) with M8 plug, 4 pole, Cable Length: 0.2 m, Color Lens: Blue, Color LED: Blue, Rated operational voltage LED: 24 V AC/DC, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, VDE 0660
Automation > Indicator light complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller C22-L-B-24-P30 indicator lights deliver dependable optical status indication on automation machinery, control panels, and process equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of indicator lights (EF001965): 1
- Colour lens (EF000207): Blue
- Type of lamp socket (EF008229): LED
- With light source (EF005905): true
- Rated operating voltage Ue (EF002418): 24 V
- Voltage type (EF000187): AC/DC
- Construction type lens (EF006253): Round
- Type of lens (EF008343): Flat
- Hole diameter (EF000079): 22 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- With front ring (EF006014): true
- Material front ring (EF005972): Plastic
More info
▲Indicator light, Flat, Cable (black) with M8 plug, 4 pole, 0.2 m, Lens Blue, LED Blue, 24 V AC/DC
Indicator light, Product range: RMQ compact solution, Complete unit, Design: Flat, Connection type: Cable (black) with M8 plug, 4 pole, Cable Length: 0.2 m, Colour Lens: Blue, Colour LED: Blue, Rated operational voltage LED: 24 V AC/DC, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, VDE 0660
Delivery program
Product range
RMQ compact solution
Basic function
Indicator lights
Single unit/Complete unit
Complete unit
Design
Flat
Connection type
Cable (black) with M8 plug, 4 pole
Cable Length
0.2 m
Colour
Lens
Blue
LED
Blue
Rated operational voltage LED
24 V AC/DC
Degree of Protection
IP66, IP67, IP69 (front)
IP65 (on rear)
IP65 (on rear)
Connection to SmartWire-DT
no
Technical data
General
Standards
IEC/EN 60947-5-1
VDE 0660
VDE 0660
Certifications
CE, UL, CSA
Plug tightening torque
0.6 N/m
Tightening torque Threaded ring
2 Nm
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Degree of Protection
IP66, IP67, IP69 (front)
IP65 (on rear)
IP65 (on rear)
Ambient temperatureOpen
-30 - +70 °C
Ambient temperatureStorage
- 30 - + 80 °C
Mounting position
As required
Mechanical shock resistance, shock duration 11 ms
> 30 g
Contacts
Rated impulse withstand voltage [Uimp]
800 V AC
Rated insulation voltage [Ui]
30 V
Overvoltage category/pollution degree
III/3
Max. short-circuit protective deviceFuse [gG/gL]
4 A
Rated conditional short-circuit current [Iq]
1 kA
Cable characteristics
Design
M8
Cable Length
0.2 m
Material characteristic
PUR
Diameter [⌀]
4.7 mm
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-30 °C
Operating ambient temperature max.
+70 °C
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Indicator light complete (EC000272)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Indicator light complete ([email protected] [AKF041014])
Number of indicator lights
1
Colour lens
Blue
Type of lamp socket
LED
With light source
Yes
Rated operating voltage Ue
24 - 24 V
Voltage type
AC/DC
Type of electric connection
Other
Construction type lens
Round
Type of lens
Flat
Hole diameter
22.5 mm
Width opening
0 mm
Height opening
0 mm
With front ring
Yes
Material front ring
Plastic
Colour front ring
Other
Degree of protection (IP)
Other
Degree of protection (NEMA)
Other
Approvals
Product Standards
IEC/EN 60947-5-1; UL 508; CAN/CSA-C22.2 No. 14-18 and No. 94.2-15; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
165628
CSA Class No.
321103
North America Certification
UL listed, CSA certified
