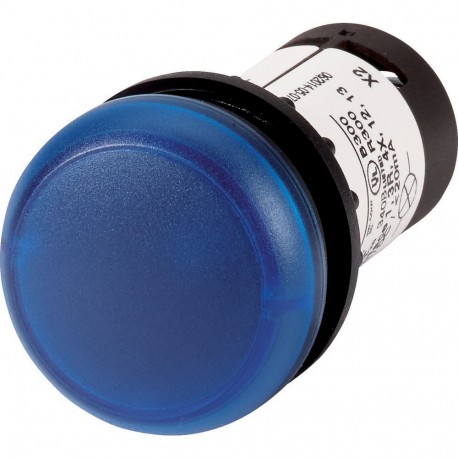

EATON - MOELLER C22-L-B-24 C22-L-B-24 121630 Y7-121630 EATON ELECTRIC C22-L-B-24 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

C22-L-B-24 121630 Y7-121630 EATON ELECTRIC C22-L-B-24

C22-L-B-24

121630

Y7-121630

EATON - MOELLER

1 Pcs.

C22-L-B-24 Eaton Moeller® series C22 Indicator light, Flat, Screw connection, Lens Blue, LED Blue, 24 V AC/DC Indicator light, Product range: RMQ Compact, Complete unit, Design: Flat, Connection type: Screw connection, Color Lens: Blue, Color LED: Blue, Rated operational voltage LED: 24 V AC/DC, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, VDE 0660

Automation > Indicator light complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Electric indicator light delivers bright optical indication for industrial control cabinets and machinery interfaces. Panel builders use these components to communicate system states, modes, and alarms. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of indicator lights (EF001965): 1
  • Colour lens (EF000207): Blue
  • Type of lamp socket (EF008229): LED
  • With light source (EF005905): Yes
  • Rated operating voltage Ue (EF002418): 24 V
  • Voltage type (EF000187): AC/DC
  • Type of electric connection (EF003961): Screw connection
  • Construction type lens (EF006253): Round
  • Type of lens (EF008343): Flat
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series C22 Indicator light
Catalog Number
121630
Model Code
C22-L-B-24
EAN
4015081194445
Product Length/Depth
56 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
UL 508
UL Category Control No.: NKCR
UL Listed
UL File No.: E29184
CSA certified
IEC/EN 60947-5-1
CSA File No.: 165628
VDE 0660
CE marking
CSA Class No.: 321103
CSA-C22.2 No. 14-05 and 94-M91

Features & Functions

Bezel color
Other
Bezel material
Plastic
Design
Flat
Electric connection type
Screw connection
Fitted with:
Light source
Front ring
Lens color
Blue
Light color
Blue

General

Connection to SmartWire-DT
No
Degree of protection
NEMA 4X, 13
IP67/IP69K
Mounting position
As required
Opening diameter
22.5 mm
Overvoltage category
III
Pollution degree
3
Product Category
RMQ Compact
Rated impulse withstand voltage (Uimp)
4000 V AC
Terminal capacity
2 x (0.5 - 1.5) mm², solid
2 x (0.5 - 1.5) mm², flexible with ferrules to DIN 46228
Tightening torque
0.8 Nm, Screw terminals
Type
Indicator lights
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
250 V
Rated operational voltage
24 V AC/DC (LED)
Rated operational voltage (Ue) - min
24 V
Rated operational voltage (Ue) - max
24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
