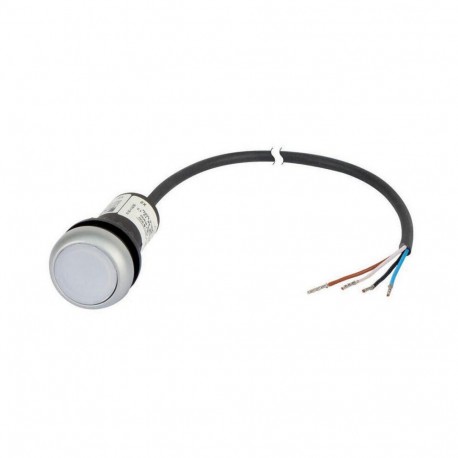

C22-DRL-W-K10-24-P62 185592 Y7-185592 EATON ELECTRIC Push-button light flush compact 22mm Latching White 24 ..
C22-DRL-W-K10-24-P62
185592
Y7-185592
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Illuminated latching pushbuttons maintain their switched state while providing visual feedback through an integrated indicator lamp, making them ideal for power-on controls or operational mode selection. The Eaton Moeller C22-DRL-W-K10-24-P62 comes equipped with a pre-wired cable for streamlined installation.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): White
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): Yes
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- Supply voltage lamp (EF006522): 24 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- Type of electric connection (EF003961): Cable
More info
▲General specifications
IEC/EN 60947-5-1
UL
CE
CSA
CSA Class No.: 321103
CSA File No.: 165628
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
Features & Functions
Classical
General
IP67/IP69K
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Maintained
