C22-DRL-G-K10-24-P5 181366 Y7-181366 EATON ELECTRIC Illuminated pushbutton actuators maintained green 24v 1 ..
C22-DRL-G-K10-24-P5
181366
Y7-181366
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

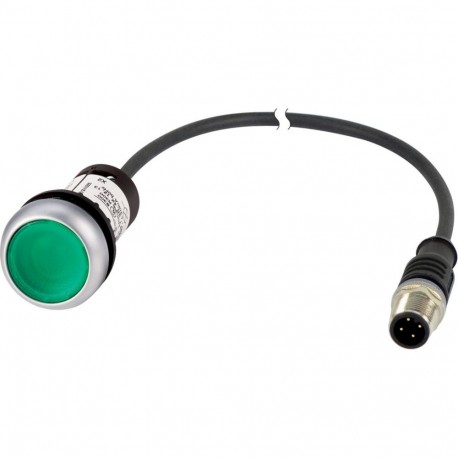

Eaton Moeller C22-DRL-G-K10-24-P5 is an illuminated pushbutton actuator utilized to manage operational sequences and deliver visual feedback on industrial control panels. Control hardware like this is essential for supervising automated mechanical systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): Green
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): Yes
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- Supply voltage lamp (EF006522): 24 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲General specifications
CSA File No.: 165628
CE
UL Category Control No.: NKCR
CSA Class No.: 321103
UL
UL 508
CSA
IEC/EN 60947-5-1
VDE 0660
CSA-C22.2 No. 14-05 and 94-M91
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
Features & Functions
Flat
Classical
General
IP67/IP69K
2 Nm, Threaded ring
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Switching function latching
