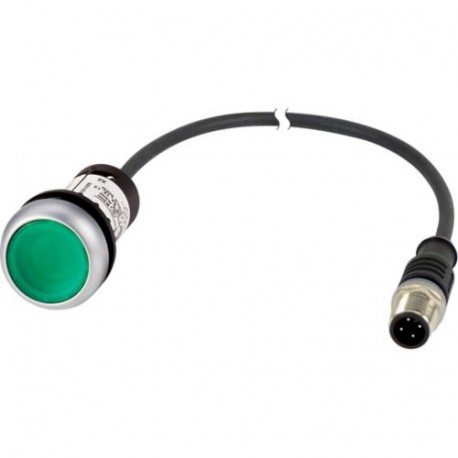

C22-DRL-G-K10-24-P3 181629 Y7-181629 EATON ELECTRIC Illuminated pushbutton actuators maintained green 24v 1 ..
C22-DRL-G-K10-24-P3
181629
Y7-181629
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An illuminated pushbutton actuator offers reliable manual input capabilities for control panels while offering optical indication to operators during active sequences. These components integrate into industrial automation switchboards to govern machine cycles and manage operational modes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): Green
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): Yes
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- Supply voltage lamp (EF006522): 24 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲General specifications
UL 508
UL
CSA Class No.: 321103
UL File No.: E29184
VDE 0660
CSA-C22.2 No. 14-05 and 94-M91
IEC/EN 60947-5-1
CSA File No.: 165628
UL Category Control No.: NKCR
CE
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
Features & Functions
M12A
Classical
General
IP67/IP69K
1 Nm, Plug
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Switching function latching
