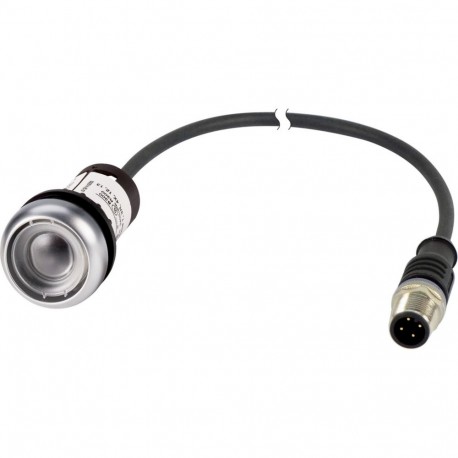

C22-DR-X-K10-P5 181089 Y7-181089 EATON ELECTRIC Pushbutton without panel maintained 1 N/O with cable 1m and ..
C22-DR-X-K10-P5
181089
Y7-181089
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A maintained pushbutton without a plate allows custom labeling or specialized actuator caps to be fitted for unique industrial control requirements. Its latching mechanism holds the switch position until manually toggled back, making it useful for continuous operational modes. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): Without button plate
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- Supply voltage lamp (EF006522): 0 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲General specifications
VDE 0660
CSA File No.: 165628
CSA-C22.2 No. 14-05 and 94-M91
CE
UL 508
CSA
UL File No.: E29184
IEC/EN 60947-5-1
CSA Class No.: 321103
UL Category Control No.: NKCR
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
Features & Functions
Flat
Classical
General
IP67/IP69K
1 Nm, Plug
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Maintained
