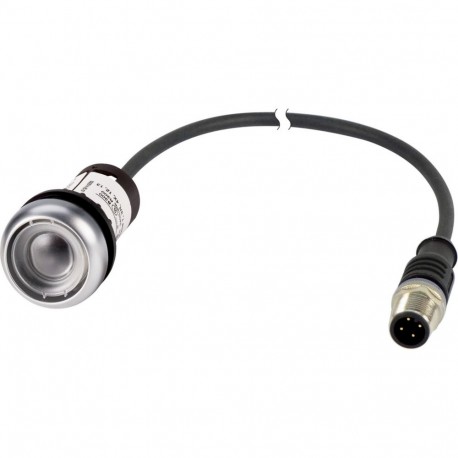

C22-DR-X-K10-P3 181616 Y7-181616 EATON ELECTRIC Pushbutton without panel maintained 1 N/O with cable 0.5m an..
C22-DR-X-K10-P3
181616
Y7-181616
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller maintained pushbutton (C22-DR-X-K10-P3) offers reliable manual control functionality on machine panels, featuring a latching action to maintain contact position until toggled. Pre-wired with an integrated cable, it streamlines electrical installation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): Without button plate
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- Supply voltage lamp (EF006522): 0 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲General specifications
CSA-C22.2 No. 14-05 and 94-M91
IEC/EN 60947-5-1
UL 508
UL Category Control No.: NKCR
CSA File No.: 165628
UL File No.: E29184
CE
CSA Class No.: 321103
UL
VDE 0660
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
Features & Functions
Flat
Classical
General
IP67/IP69K
2 Nm, Threaded ring
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Switching function latching
