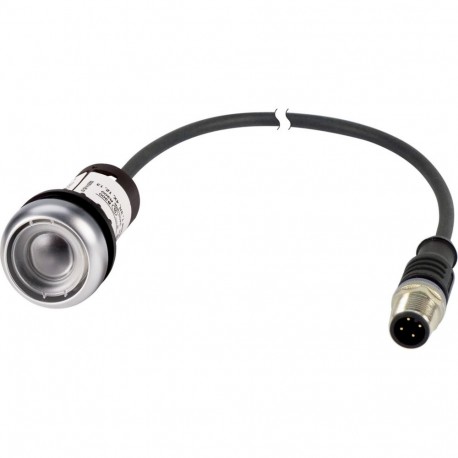

EATON - MOELLER C22-DR-X-K10-P1 C22-DR-X-K10-P1 185689 Y7-185689 EATON ELECTRIC Push button flush compact, 22 mm Interlock No plaque 1 NO ca.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

C22-DR-X-K10-P1 185689 Y7-185689 EATON ELECTRIC Push button flush compact, 22 mm Interlock No plaque 1 NO ca..

C22-DR-X-K10-P1

185689

Y7-185689

EATON - MOELLER

1 Pcs.

Push button flush compact, 22 mm; Interlock; No plaque; 1 NO; cable 0.2 m and connector M12A C22-DR-X-K10-P1 Eaton Moeller® series C22 Pushbutton, classic, flat, maintained, 1 N/O, cable (black) with m12a plug, 4 pole, 0.2 m Pushbutton, RMQ compact solution, Complete unit, Design: Flat, maintained, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 0.2 m, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Bezel: titanium, Connection to SmartWire-DT: no, N/O = Normally open: 1 N/O, Standards: IEC/EN 60947-5-1, VDE 0660

Automation > Push button, complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series C22 Pushbutton
Catalog Number
185689
Model Code
C22-DR-X-K10-P1
EAN
4015081811830
Product Length/Depth
260 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.035 kg
Certifications
UL
IEC/EN 60947-5-1
CSA
VDE 0660
CE
CSA Class No.: 321103
CSA File No.: 165628
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL File No.: E29184

Features & Functions

Bezel color
Titanium
Bezel material
Plastic
Design
M12A
Flat
Classical
Electric connection type
Other
Fitted with:
Front ring

General

Cable length
0.2 m
Cable material
PUR
Connection to SmartWire-DT
No
Connection type
Cable (black) with M12A plug, 4 pole
Degree of protection
NEMA 12
IP67/IP69K
Lifespan, mechanical
1,000,000 Operations (AC operated)
Mounting position
As required
Opening diameter
22.5 mm
Operating frequency
3600 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
RMQ compact solution
Rated impulse withstand voltage (Uimp)
800 V AC
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Tightening torque
2 Nm, Threaded ring
1 Nm, Plug
Type
Pushbutton actuator

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
-30 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
250 V
Rated operational current (Ie) at DC-13, 24 V
3 A
Rated operational current (Ie) at AC-15, 24 V
4 A
Short-circuit protection rating
Max. 4 A gG/gL, Fuse, Contacts

Actuator

Actuating force
5 N
Actuator color
Without button plate
Actuator diameter
29.7 mm
Actuator function
Maintained
Switching function latching

Contacts

Control circuit reliability
1 failure per 17,000,000 swtching operations (statistically determined, at 17 V DC/7 mA: N/O contact
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
1

ETIM for 185689 Low-voltage industrial controls and switchgear (EC001028)
Feature Name Feature Value
Number of command positions (EF001372) 1
Type of button (EF001546) Flat
Colour button (EF000190) Without button plate
Transparent (EF006243) No
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Suitable for lighting (EF001142) No
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
Supply voltage lamp (EF006522) 0 V
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as change-over contact (EF008257) 0
Type of electric connection (EF003961) Other
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Titanium
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 12
