C22-DR-X-K02-P62 185612 Y7-185612 EATON ELECTRIC Push button flush compact, 22 mm Interlock Without plate 2 ..
C22-DR-X-K02-P62
185612
Y7-185612
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

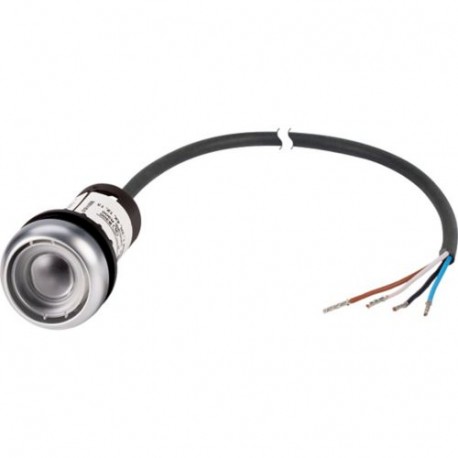

An Eaton Moeller compact flush push button, part number C22-DR-X-K02-P62, integrates interlock switching capabilities with pre-wired cable terminations for reliable signal transmission in tight spaces. Automation engineers utilize these components for secure multi-contact circuit control.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions: 1
- Type of button: Flat
- Colour button: Without button plate
- Transparent: No
- Construction type lens: Round
- Hole diameter: 22.5 mm
- Width opening: 0 mm
- Height opening: 0 mm
- Suitable for lighting: No
- Switching function latching: Yes
- Spring-return: No
- Supply voltage lamp: 0 V
- Number of contacts as normally open contact: 0
- Number of contacts as normally closed contact: 2
- Number of contacts as change-over contact: 0
- Type of electric connection: Cable
More info
▲General specifications
CE
VDE 0660
UL
CSA
CSA Class No.: 321103
CSA File No.: 165628
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
Features & Functions
Classical
General
IP67/IP69K
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Switching function latching
