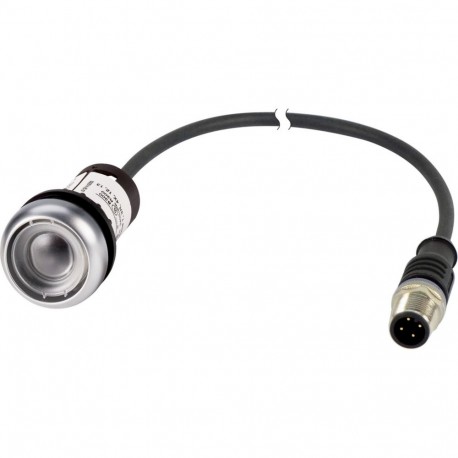

C22-DR-X-K01-P32 185665 EATON ELECTRIC Push button flush compact, 22 mm Interlock Without plate 1 NC cable 1..
C22-DR-X-K01-P32
185665
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller push button flush compact (C22-DR-X-K01-P32) serves as a reliable human-machine interface component in control panels, enabling operators to manually send electrical control signals to machinery or automated processes. These actuators are commonly integrated into industrial control desks, distribution boards, and emergency stop circuits to manage operational states.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): Without button plate
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- Supply voltage lamp (EF006522): 0 V
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲Delivery program
IP65 (on rear)

= safety function, by positive opening to IEC/EN 60947-5-1Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
IP65 (on rear)
