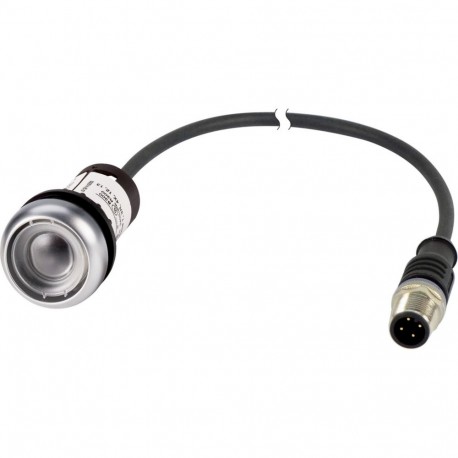

EATON - MOELLER C22-DR-X-K01-P3 C22-DR-X-K01-P3 181614 Y7-181614 EATON ELECTRIC Pushbutton without panel maintained 1 N/C with cable 0.5m an.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

C22-DR-X-K01-P3 181614 Y7-181614 EATON ELECTRIC Pushbutton without panel maintained 1 N/C with cable 0.5m an..

C22-DR-X-K01-P3

181614

Y7-181614

EATON - MOELLER

1 Pcs.

Pushbutton without panel; maintained; 1 N/C; with cable 0.5m and M12A plug C22-DR-X-K01-P3 Eaton Moeller® series C22 Pushbutton without panel; maintained; 1 N/C; with cable 0.5m and M12A plug Pushbutton, RMQ compact solution, Complete unit, Design: Flat, maintained, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 0.5 m, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Bezel: titanium, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660

Automation > Push button, complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series C22 Pushbutton
Catalog Number
181614
Model Code
C22-DR-X-K01-P3
EAN
4015081764815
Product Length/Depth
560 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.048 kg
Certifications
VDE 0660
CSA File No.: 165628
CSA
IEC/EN 60947-5-1
CSA-C22.2 No. 14-05 and 94-M91
CE
UL 508
CSA Class No.: 321103
UL
UL Category Control No.: NKCR
UL File No.: E29184
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
Catalog Notes
Contacts with safety function, by positive opening to IEC/EN 60947-5-1

Features & Functions

Bezel color
Titanium
Bezel material
Plastic
Design
Flat
M12A
Classical
Electric connection type
Other
Features
Positive opening
Fitted with:
Front ring

General

Cable length
0.5 m
Cable material
PUR
Connection to SmartWire-DT
No
Connection type
Cable (black) with M12A plug, 4 pole
Degree of protection
NEMA 12
IP67/IP69K
Lifespan, mechanical
1,000,000 Operations (AC operated)
Mounting position
As required
Opening diameter
22.5 mm
Operating frequency
3600 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
RMQ compact solution
Rated impulse withstand voltage (Uimp)
800 V AC
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Tightening torque
1 Nm, Plug
2 Nm, Threaded ring
Type
Pushbutton actuator

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
30 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
250 V
Rated operational current (Ie) at DC-13, 24 V
3 A
Rated operational current (Ie) at AC-15, 24 V
4 A
Short-circuit protection rating
Max. 4 A gG/gL, Fuse, Contacts

Actuator

Actuating force
5 N
Actuator color
Without button plate
Actuator diameter
29.7 mm
Actuator function
Switching function latching
Maintained
Actuator travel and actuation force (DIN EN 60947-5-1)
4.65 mm
Knob travel
5.7 mm

Contacts

Control circuit reliability
1 failure per 900,000 switching operations statistically determined, at 17 V DC/7 mA: N/C contact)
Force for positive opening - min
15 N
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
0

ETIM for 181614 Low-voltage industrial controls and switchgear (EC001028)
Feature Name Feature Value
Number of command positions (EF001372) 1
Type of button (EF001546) Flat
Colour button (EF000190) Without button plate
Transparent (EF006243) No
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Suitable for lighting (EF001142) No
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
Supply voltage lamp (EF006522) 0 V
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as change-over contact (EF008257) 0
Type of electric connection (EF003961) Other
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Titanium
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 12
