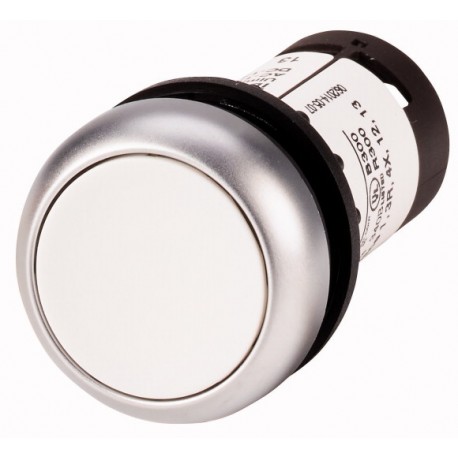

C22-DR-W-K11 132485 EATON ELECTRIC C22-DR-W-K11
C22-DR-W-K11
132485
EATON - MOELLER
1 Pcs.
C22-DR-W-K11
Pushbutton, Flat, maintained, 1 NC, 1 N/O, Screw connection, White, Blank, Bezel: titanium
Pushbutton, RMQ Compact, Complete unit, Design: Flat, maintained, Connection type: Screw connection, button plate: White, Button plate Blank, Name: None, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller C22-DR-W-K11 is a latching mechanical pushbutton designed to maintain operator states within electrical control panels and machinery. Panel-mounted control devices like this allow technicians to securely toggle or hold operational modes across industrial systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): White
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- Supply voltage lamp (EF006522): 0 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as change-over contact (EF008257): 0
- Type of electric connection (EF003961): Screw connection
More info
▲Pushbutton, Flat, maintained, 1 NC, 1 N/O, Screw connection, White, Blank, Bezel: titanium
Pushbutton, RMQ Compact, Complete unit, Design: Flat, maintained, Connection type: Screw connection, button plate: White, Button plate Blank, Name: None, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660
Delivery program
Product range
RMQ Compact
Basic function
Pushbutton actuators
Single unit/Complete unit
Complete unit
Design
Flat
maintained
Connection type
Screw connection
Button plate
button plate
White
Blank
Name
None
Degree of Protection
IP66, IP67, IP69
Front ring
Bezel: titanium
Connection to SmartWire-DT
no
Contacts
N/C = Normally closed
1 NC
N/O = Normally open
1 N/O
Notes
= safety function, by positive opening to IEC/EN 60947-5-1Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1
[mm]
4.65
Maximum travel [mm]
5.7
Minimum force for positive opening [ N]
20
Contact travel■ = Contact closed□ = Contact open
Positive opening (ZW)
yes
Technical data
General
Standards
IEC/EN 60947-5-1
VDE 0660
VDE 0660
Lifespan, mechanical [Operations]
> 5 x 106
Operating frequency [Operations/h]
≦ 3600
Actuating force
≦ 5 n
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Degree of Protection
IP66, IP67, IP69
Ambient temperatureOpen
-25 - +70 °C
Ambient temperatureStorage
- -30 - + 80 °C
Mounting position
As required
Terminal capacitiesSolid
2 x 0.5 - 1.5_x mm2
Terminal capacitiesFlexible with ferrule
2 x 0.5 - 1.5_x mm2
Tightening torque for terminal screw
0.8 Nm
Contacts
Rated impulse withstand voltage [Uimp]
4000 V AC
Rated insulation voltage [Ui]
250 V
Rated conditional short-circuit current [Iq]
1 kA
Overvoltage category/pollution degree
III/3
Max. short-circuit protective deviceFuse [gG/gL]
10 A
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Push button, complete (EC001028)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Push-button actuator, complete unit ([email protected] [AKF046014])
Number of command positions
1
Type of button
Flat
Colour button
White
Construction type lens
Round
Hole diameter
22.5 mm
Width opening
0 mm
Height opening
0 mm
Suitable for illumination
No
Switching function latching
Yes
Spring-return
No
Supply voltage lamp
0 V
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Type of electric connection
Screw connection
With front ring
Yes
Material front ring
Plastic
Colour front ring
Other
Degree of protection (IP)
Other
Degree of protection (NEMA)
Approvals
Product Standards
IEC/EN 60947-5-1; UL 508; CAN/CSA-C22.2 No. 14-05 und 94-M91; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
165628
CSA Class No.
321103
North America Certification
UL listed, CSA certified
Degree of Protection
1,3R,4X,12,13
