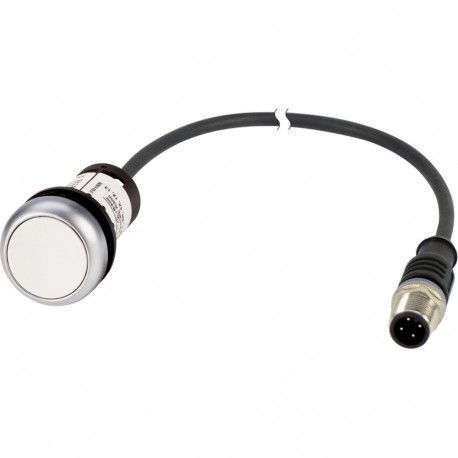

C22-DR-W-K10-P30 185704 EATON ELECTRIC Push button flush compact, 22 mm Interlocking White 1 NO cable 0.2 m ..
C22-DR-W-K10-P30
185704
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller Push button flush compact is a panel-mounted device used by operators to initiate manual switching actions within industrial machinery and distribution boards. It facilitates routine user interventions like mode changes or system resets.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): White
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- Supply voltage lamp (EF006522): 0 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲Delivery program
IP65 (on rear)
Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
IP65 (on rear)
