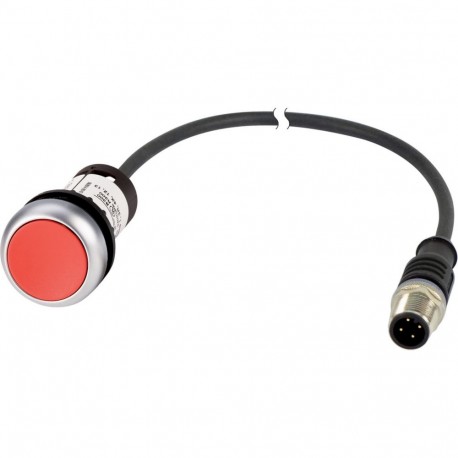

C22-DR-R-K01-P31 185644 EATON ELECTRIC Push button flush compact 22mm Latching Red 1 NC cable 0.5 m and conn..
C22-DR-R-K01-P31
185644
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller C22-DR-R-K01-P31 185644 EATON ELECTRIC Push button flush compact 22mm Latching Red 1 NC cable 0.5 m and conn.. offers secure latching operation for machine control panels. Latching pushbuttons maintain their engaged contact state until manually reset by an operator.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): Red
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- Supply voltage lamp (EF006522): 0 V
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲Delivery program
IP65 (on rear)

= safety function, by positive opening to IEC/EN 60947-5-1Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
IP65 (on rear)
