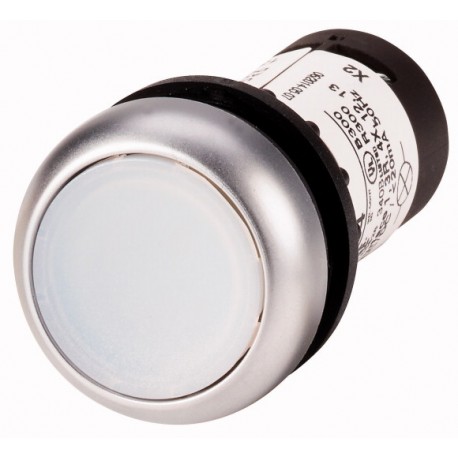

C22-DL-W-K10-120 136627 EATON ELECTRIC Illuminated pushbutton actuator, Flat, momentary, 1 N/O, Screw connec..
C22-DL-W-K10-120
136627
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller C22-DL-W-K10-120 illuminated pushbutton actuator combines manual switching capabilities with built-in visual status indication. These units are deployed on control panels to provide operators with clear operational feedback during system use.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): White
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- Supply voltage lamp (EF006522): 120 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- Type of electric connection (EF003961): Screw connection
More info
▲Delivery program
Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
