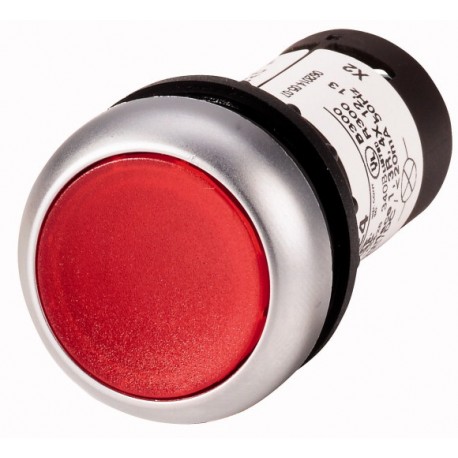

C22-DL-R-K01-24 136626 EATON ELECTRIC C22-DL-R-K01-24
C22-DL-R-K01-24
136626
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An illuminated pushbutton is an electromechanical control device installed in industrial automation enclosures to combine manual circuit switching with active visual indication. Operators use these units to govern equipment starts, stops, and mode shifts while viewing panel status. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): Red
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- Supply voltage lamp (EF006522): 24 V
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as change-over contact (EF008257): 0
- Type of electric connection (EF003961): Screw connection
More info
▲Delivery program

= safety function, by positive opening to IEC/EN 60947-5-1Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
