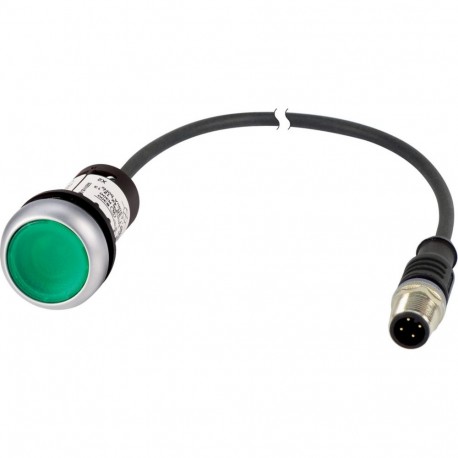

C22-DL-G-K10-24-P5 181300 Y7-181300 EATON ELECTRIC Illuminated pushbutton actuators momentary green 24v 1 N/..
C22-DL-G-K10-24-P5
181300
Y7-181300
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for control panel integration, this Eaton Moeller C22-DL-G-K10-24-P5 181300 Y7-181300 EATON ELECTRIC Illuminated pushbutton actuators momentary green 24v 1 N/.. delivers dependable visual feedback and switching performance. Panel builders rely on such components to initiate momentary control signals across diverse manufacturing processes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): Green
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- Supply voltage lamp (EF006522): 24 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- With front ring (EF006014): Yes
More info
▲General specifications
CSA Class No.: 321103
UL File No.: E29184
CSA-C22.2 No. 14-05 and 94-M91
IEC/EN 60947-5-1
UL 508
CSA
UL Category Control No.: NKCR
UL
VDE 0660
CSA File No.: 165628
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
Features & Functions
Flat
Classical
General
IP67/IP69K
1 Nm, Plug
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Momentary
