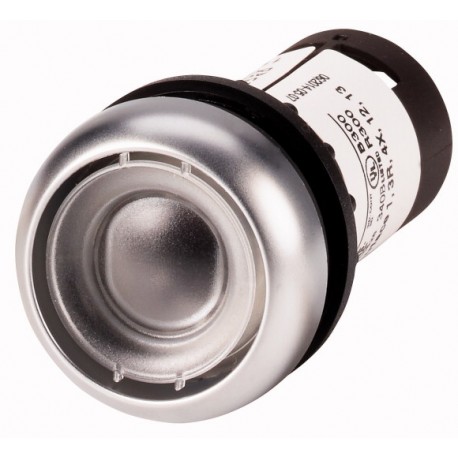

EATON - MOELLER C22-D-X-K10 C22-D-X-K10 132469 EATON ELECTRIC C22-D-X-K10 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

C22-D-X-K10 132469 EATON ELECTRIC C22-D-X-K10

C22-D-X-K10

132469

EATON - MOELLER

1 Pcs.

C22-D-X-K10 Pushbutton, Flat, momentary, 1 N/O, Screw connection, Without button plate, Bezel: titanium Pushbutton, RMQ Compact, Complete unit, Design: Flat, momentary, Connection type: Screw connection, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: no, N/O = Normally open: 1 N/O, Standards: IEC/EN 60947-5-1, VDE 0660

Automation > Push button, complete
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller C22-D-X-K10 is a modular push button designed for integration into industrial control panels and automation equipment. Such actuators allow technicians to establish manual control circuits, making and breaking electrical connections safely during operation. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 1
  • Type of button (EF001546): Flat
  • Colour button (EF000190): Without button plate
  • Transparent (EF006243): No
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Suitable for lighting (EF001142): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • Supply voltage lamp (EF006522): 0 V
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Type of electric connection (EF003961): Screw connection

More info

▲
Pushbutton, Flat, momentary, 1 N/O, Screw connection, Without button plate, Bezel: titanium
Pushbutton, RMQ Compact, Complete unit, Design: Flat, momentary, Connection type: Screw connection, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: no, N/O = Normally open: 1 N/O, Standards: IEC/EN 60947-5-1, VDE 0660

Delivery program

Product range
RMQ Compact
Basic function
Pushbutton actuators
Single unit/Complete unit
Complete unit
Design
Flat
momentary
Connection type
Screw connection
Button plate
button plate
Without button plate
Degree of Protection
IP66, IP67, IP69
Front ring
Bezel: titanium
Connection to SmartWire-DT
no
Contacts
N/O = Normally open
1 N/O
Contact sequence
Contact travel■ = Contact closed□ = Contact open
Contact diagram

Technical data

General
Standards
IEC/EN 60947-5-1
VDE 0660
Lifespan, mechanical [Operations]
> 5 x 106
Operating frequency [Operations/h]
≦ 3600
Actuating force
≦ 5 n
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Degree of Protection
IP66, IP67, IP69
Ambient temperatureOpen
-25 - +70 °C
Ambient temperatureStorage
- -30 - + 80 °C
Mounting position
As required
Terminal capacitiesSolid
2 x 0.5 - 1.5_x mm2
Terminal capacitiesFlexible with ferrule
2 x 0.5 - 1.5_x mm2
Tightening torque for terminal screw
0.8 Nm
Contacts
Rated impulse withstand voltage [Uimp]
4000 V AC
Rated insulation voltage [Ui]
250 V
Rated conditional short-circuit current [Iq]
1 kA
Overvoltage category/pollution degree
III/3
Max. short-circuit protective deviceFuse [gG/gL]
10 A

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Push button, complete (EC001028)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Push-button actuator, complete unit ([email protected] [AKF046014])
Number of command positions
1
Type of button
Flat
Colour button
Without button plate
Construction type lens
Round
Hole diameter
22.5 mm
Width opening
0 mm
Height opening
0 mm
Suitable for illumination
No
Switching function latching
No
Spring-return
Yes
Supply voltage lamp
0 V
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Type of electric connection
Screw connection
With front ring
Yes
Material front ring
Plastic
Colour front ring
Other
Degree of protection (IP)
Other
Degree of protection (NEMA)

Approvals

Product Standards
IEC/EN 60947-5-1; UL 508; CAN/CSA-C22.2 No. 14-05 und 94-M91; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
165628
CSA Class No.
321103
North America Certification
UL listed, CSA certified
Degree of Protection
1,3R,4X,12,13

Dimensions


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
