C22-D-R-K01 132437 EATON ELECTRIC C22-D-R-K01
C22-D-R-K01
132437
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

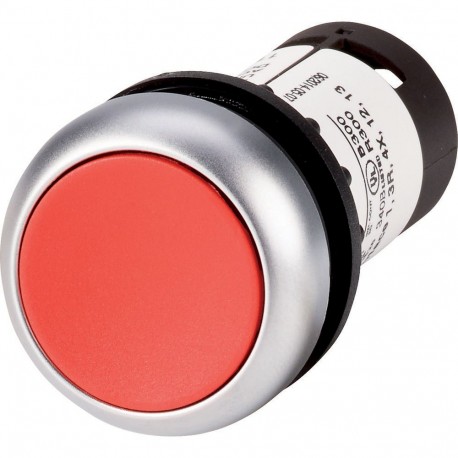

An Eaton Moeller pushbutton is deployed across industrial automation systems to allow operators to send interruption or control signals to motor starters and control circuits. This red flat unit utilizes a spring-return mechanism paired with a normally closed contact block for safety-related interlocks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): Red
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- Supply voltage lamp (EF006522): 0 V
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as change-over contact (EF008257): 0
- Type of electric connection (EF003961): Screw connection
More info
▲Delivery program

= safety function, by positive opening to IEC/EN 60947-5-1Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
