C22-D-G-X1-K10 131799 EATON ELECTRIC C22-D-G-X1-K10
C22-D-G-X1-K10
131799
EATON - MOELLER
1 Pcs.
Automation > Push button, complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

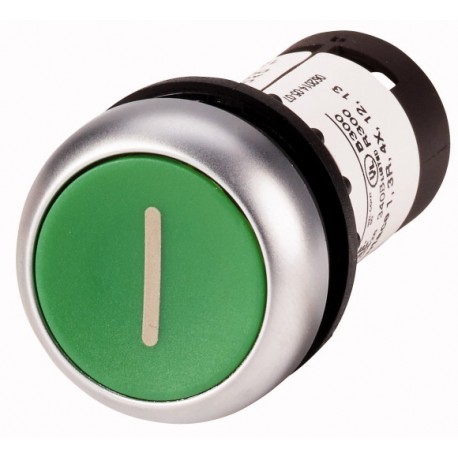

Constructed with standard screw connections, this Eaton Moeller C22-D-G-X1-K10 green pushbutton provides reliable manual control for industrial control panels. Operators utilize these spring-return interface components to initiate discrete automation commands safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 1
- Type of button (EF001546): Flat
- Colour button (EF000190): Green
- Transparent (EF006243): No
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Suitable for lighting (EF001142): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- Supply voltage lamp (EF006522): 0 V
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- Type of electric connection (EF003961): Screw connection
More info
▲Delivery program
Technical data
VDE 0660
Damp heat, cyclic, to IEC 60068-2-30
