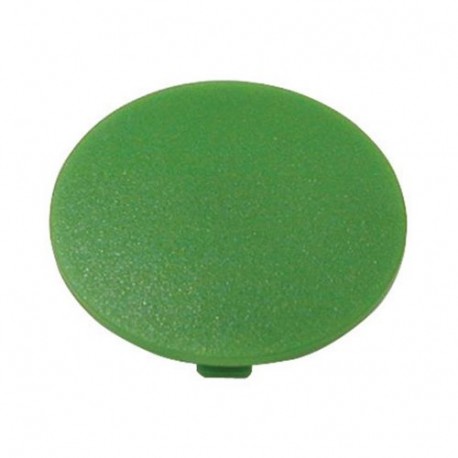

EATON - MOELLER M22-XDP-G M22-XDP-G 216438 Y7-216438 EATON ELECTRIC Button plate, mushroom green, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDP-G 216438 Y7-216438 EATON ELECTRIC Button plate, mushroom green, blank

M22-XDP-G

216438

Y7-216438

EATON - MOELLER

1 Pcs.

Button plate, mushroom green, blank M22-XDP-G Eaton Moeller® series M22 Button plate, mushroom green, blank Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Selection to: Blank, For use with: M22(S)-D(R)P-…, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-XDP-G button plate is designed for mushroom head operators, providing a prominent and color-coded surface for specialized machine actuation. These components help streamline human-machine interfaces on electrical enclosures and control desks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): Flat
  • Colour (EF000007): Green
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 9 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): No
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): Yes
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
216438
Model Code
M22-XDP-G
EAN
4015082164386
Product Length/Depth
24 mm
Product Height
9 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Features & Functions

Color
Green
Inscription
Individual inscription possible: > 5 characters: letter height 3 mm
Individual inscription possible: ≤ 5 characters: letter height 5 mm
None
Inscription type
Blank
Language
Other
Shape
Round

General

Product Category
Accessories
Suitable for
Mushroom head push button
Type
Flat
Used with
M22-DG-X
M22(S)-DR-X
M22(S)-D-X
M22(S)-D(R)P-…

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
