EATON - MOELLER M22-XDP-S-X14 M22-XDP-S-X14 218268 Y7-218268 EATON ELECTRIC Button plate, mushroom black, clamp symbol View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDP-S-X14 218268 Y7-218268 EATON ELECTRIC Button plate, mushroom black, clamp symbol

M22-XDP-S-X14

218268

Y7-218268

EATON - MOELLER

1 Pcs.

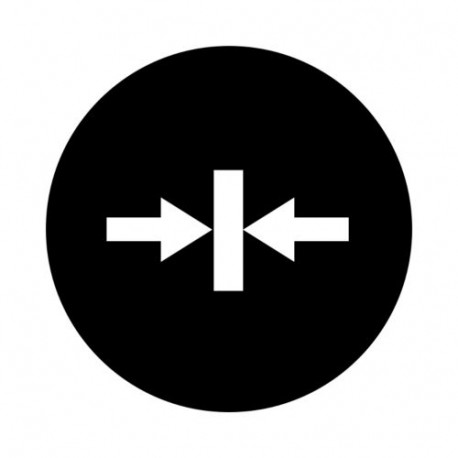

Button plate, mushroom black, clamp symbol M22-XDP-S-X14 Eaton Moeller® series M22 Button plate, mushroom black, clamp symbol Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Name: Clamp, Selection to: Symbol, For use with: M22(S)-D(R)P-…, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a specialized operator interface accessory, the Eaton Moeller M22-XDP-S-X14 button plate, mushroom black, clamp symbol mounts onto compatible actuators to clearly designate specific machine functions. Such components are widely utilized across control desks and industrial enclosures to enhance operator ergonomics and clarity.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): Flat
  • Colour (EF000007): Black
  • Imprint ISO symbols (EF006094): Symbol "Span"
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 9 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): No
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): Yes
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218268
Model Code
M22-XDP-S-X14
EAN
4015082182687
Product Length/Depth
24 mm
Product Height
9 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
