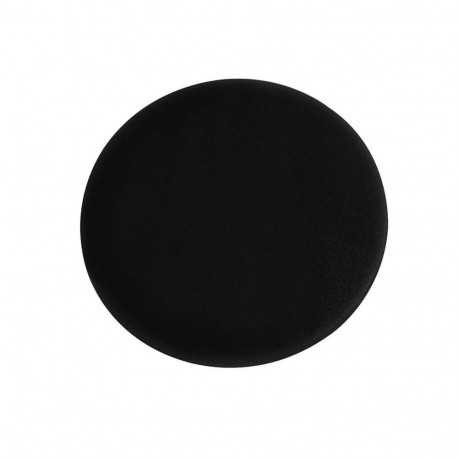

EATON - MOELLER M22-XDP-S M22-XDP-S 216435 Y7-216435 EATON ELECTRIC Button plate, mushroom black, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDP-S 216435 Y7-216435 EATON ELECTRIC Button plate, mushroom black, blank

M22-XDP-S

216435

Y7-216435

EATON - MOELLER

10 Pcs.

Button plate, mushroom black, blank M22-XDP-S Eaton Moeller® series M22 Button plate, mushroom black, blank Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Selection to: Blank, For use with: M22(S)-D(R)P-…, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for large-actuator configurations, the Eaton Moeller M22-XDP-S button plate, mushroom black, blank provides an unprinted cap for emergency or palm-operated switches on industrial equipment. These elements integrate seamlessly into modular control stations to complete operator interfaces.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): Flat
  • Colour (EF000007): Black
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 9 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): No
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): Yes
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
216435
Model Code
M22-XDP-S
EAN
4015082164355
Product Length/Depth
24 mm
Product Height
9 mm
Product Width
24 mm
Product Weight
0.002 kg
Compliances
CE Marked
Bureau Veritas
GoST-R
Certifications
CCC Marked
CSA Certified
Lloyd's Register Certified
UL/CSA certification not required
