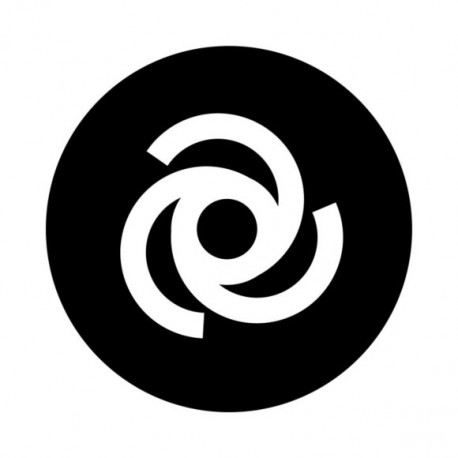

EATON - MOELLER M22-XDP-S-X10 M22-XDP-S-X10 218264 Y7-218264 EATON ELECTRIC Button plate, mushroom black, automatic sequence symbol View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDP-S-X10 218264 Y7-218264 EATON ELECTRIC Button plate, mushroom black, automatic sequence symbol

M22-XDP-S-X10

218264

Y7-218264

EATON - MOELLER

1 Pcs.

Button plate, mushroom black, automatic sequence symbol M22-XDP-S-X10 Eaton Moeller® series M22 Button plate, mushroom black, automatic sequence symbol Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Name: Automatic, Selection to: Symbol, For use with: M22(S)-D(R)P-…, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

M22-XDP-S-X10 218264 Y7-218264 EATON ELECTRIC Button plate, mushroom black, automatic sequence symbol is a black mushroom operator plate featuring an automatic output ISO symbol. Automated manufacturing systems use these specialized plates to designate switches governing programmed production workflows.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): Flat
  • Colour (EF000007): Black
  • Imprint ISO symbols (EF006094): Symbol "Automatic outlet"
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 9 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): No
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): Yes
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218264
Model Code
M22-XDP-S-X10
EAN
4015082182649
Product Length/Depth
24 mm
Product Height
9 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required
