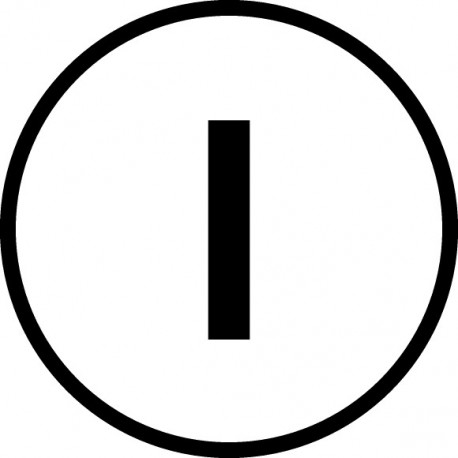

EATON - MOELLER M22-XD-W-X1 M22-XD-W-X1 218167 Y7-218167 EATON ELECTRIC Button plate, flat white, I View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XD-W-X1 218167 Y7-218167 EATON ELECTRIC Button plate, flat white, I

M22-XD-W-X1

218167

Y7-218167

EATON - MOELLER

10 Pcs.

Button plate, flat white, I M22-XD-W-X1 Eaton Moeller® series M22 Button plate, flat white, I Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Name: START, Selection to: Symbol, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-XD-W-X1 is a flat white button plate featuring an ISO start symbol for industrial control units. Operators rely on these marked actuator caps to safely initiate automated sequences and machinery power routines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): Flat
  • Colour (EF000007): White
  • Imprint ISO symbols (EF006094): Symbol " I "
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 3 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): Yes
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): No
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218167
Model Code
M22-XD-W-X1
EAN
4015082181673
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required
