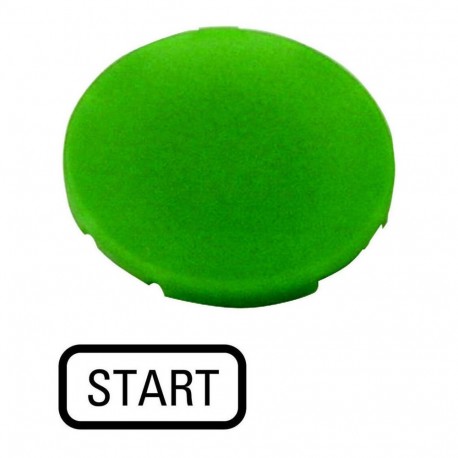

EATON - MOELLER M22-XD-G-GB1 M22-XD-G-GB1 218196 Y7-218196 EATON ELECTRIC Button plate, flat green, START View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XD-G-GB1 218196 Y7-218196 EATON ELECTRIC Button plate, flat green, START

M22-XD-G-GB1

218196

Y7-218196

EATON - MOELLER

10 Pcs.

Button plate, flat green, START M22-XD-G-GB1 Eaton Moeller® series M22 Button plate, flat green, START Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Inscription: START, Selection to: Text, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-XD-G-GB1 button plate acts as an essential visual indicator cap for industrial control push buttons, clearly marking primary activation functions on machinery switchboards. These inserts secure directly into compatible operator elements to maintain strict safety and operational standards in automated facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): Flat
  • Colour (EF000007): Green
  • Literal imprint (EF015918): START
  • Language of the imprint (EF015922): English
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 3 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): Yes
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): No
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218196
Model Code
M22-XD-G-GB1
EAN
4015082181963
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required
