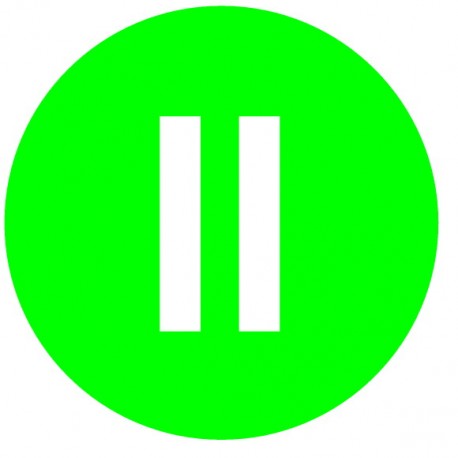

M22-XD-G-X2 218168 Y7-218168 EATON ELECTRIC Button plate, flat green, II
M22-XD-G-X2
218168
Y7-218168
EATON - MOELLER
10 Pcs.
Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Button plate, flat green, II from Eaton Moeller, part number M22-XD-G-X2, attaches to control actuators to provide standard machine labeling for factory automation systems. These inserts snap easily into compatible operator interfaces to clearly convey control functions to operators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Shape (EF000051): Round
- Construction type (EF000767): Flat
- Colour (EF000007): Green
- Imprint ISO symbols (EF006094): Symbol " II "
- Engravable (EF005877): No
- Programme diameter (EF001539): 22 mm
- Width (EF000008): 24 mm
- Height (EF000040): 3 mm
- Outer diameter (EF000015): 22.5 mm
- Suitable for push button (EF007244): Yes
- Suitable for illuminated push buttons (EF007254): No
- Suitable for indicator light (EF007255): No
- Suitable for mushroom head push button (EF007257): No
- Suitable for signalling lamp (EF007261): No
- Suitable for selector switch (EF007263): No
More info
▲General specifications
Features & Functions
Individual inscription possible: > 5 characters: letter height 3 mm
Other
General
M22(S)-D-X
M22-DG-X
