EATON - MOELLER M22-XD-B-GB14 M22-XD-B-GB14 218204 Y7-218204 EATON ELECTRIC Button plate, flat blue, RESET View larger
Images are for illustrative purposes only. Please refer to data sheet for details

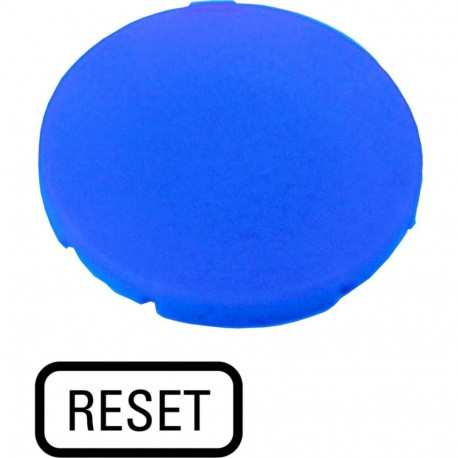

M22-XD-B-GB14 218204 Y7-218204 EATON ELECTRIC Button plate, flat blue, RESET

M22-XD-B-GB14

218204

Y7-218204

EATON - MOELLER

1 Pcs.

Button plate, flat blue, RESET M22-XD-B-GB14 Eaton Moeller® series M22 Button plate, flat blue, RESET Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Inscription: RESET, Selection to: Text, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218204
Model Code
M22-XD-B-GB14
EAN
4015082182045
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
NOM
UL Listed
UL/CSA certification not required

Features & Functions

Color
Blue
Design
Flush
Inscription
Individual inscription possible: ≤ 5 characters: letter height 5 mm
Individual inscription possible: > 5 characters: letter height 3 mm
RESET
Inscription type
Text
Language
English
Shape
Round

General

Product Category
Accessories
Suitable for
Push button

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 218204 Low-voltage industrial controls and switchgear (EC000621)
Feature Name Feature Value
Shape (EF000051) Round
Construction type (EF000767) Flat
Colour (EF000007) Blue
Literal imprint (EF015918) Reset
Language of the imprint (EF015922) English
Imprint ISO symbols (EF006094) None
Imprint (EF000131) Other
Engravable (EF005877) No
Programme diameter (EF001539) 22 mm
Width (EF000008) 24 mm
Height (EF000040) 3 mm
Outer diameter (EF000015) 22.5 mm
Suitable for push button (EF007244) Yes
Suitable for illuminated push buttons (EF007254) No
Suitable for indicator light (EF007255) No
Suitable for mushroom head push button (EF007257) No
Suitable for signalling lamp (EF007261) No
Suitable for selector switch (EF007263) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
