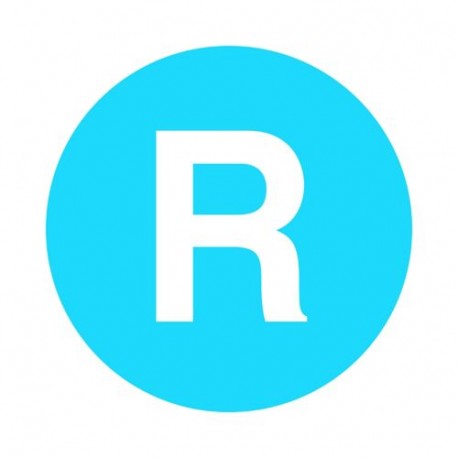

M22-XD-B-X6 218172 Y7-218172 EATON ELECTRIC Button plate, flat blue, R
M22-XD-B-X6
218172
Y7-218172
EATON - MOELLER
10 Pcs.
Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller M22-XD-B-X6 is a flat blue button plate equipped with an ISO reset symbol for industrial switching devices. These operator caps provide visual clarity and mechanical protection for control elements on automated machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Shape (EF000051): Round
- Construction type (EF000767): Flat
- Colour (EF000007): Blue
- Imprint ISO symbols (EF006094): Symbol "Reset"
- Engravable (EF005877): No
- Programme diameter (EF001539): 22 mm
- Width (EF000008): 24 mm
- Height (EF000040): 3 mm
- Outer diameter (EF000015): 22.5 mm
- Suitable for push button (EF007244): Yes
- Suitable for illuminated push buttons (EF007254): No
- Suitable for indicator light (EF007255): No
- Suitable for mushroom head push button (EF007257): No
- Suitable for signalling lamp (EF007261): No
- Suitable for selector switch (EF007263): No
More info
▲General specifications
Features & Functions
Individual inscription possible: > 5 characters: letter height 3 mm
Other
General
M22-DG-X
M22(S)-DR-X
