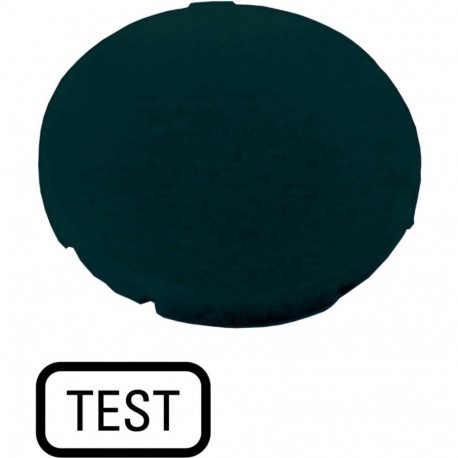

EATON - MOELLER M22-XD-S-GB9 M22-XD-S-GB9 218201 Y7-218201 EATON ELECTRIC Button plate, flat black, TEST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XD-S-GB9 218201 Y7-218201 EATON ELECTRIC Button plate, flat black, TEST

M22-XD-S-GB9

218201

Y7-218201

EATON - MOELLER

10 Pcs.

Button plate, flat black, TEST M22-XD-S-GB9 Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Inscription: TEST, Selection to: Text, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Button plate, flat black, TEST
Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Inscription: TEST, Selection to: Text, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no

General specifications
Product name
Eaton Moeller® series M22 Accessory Button plate
Part no.
M22-XD-S-GB9
EAN
4015082182014
Product Length/Depth
24 millimetre
Product height
3 millimetre
Product width
24 millimetre
Product weight
0.002 kilogram
Certifications
UL/CSA certification not required
Product Tradename
M22
Product Type
Accessory
Product Sub Type
Button plate
Features & Functions
Color
Black
Design
Flush
Inscription
Individual inscription possible: > 5 characters: letter height 3 mm
Individual inscription possible: ≤ 5 characters: letter height 5 mm
TEST
Inscription type
Text
Language
English
Shape
Round
General information
Suitable for
Push button
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Communication
Connection to SmartWire-DT
No
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Legend plate for control circuit devices (EC000621)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Button plate for command and alarm devices (ecl@ss13-27-37-12-24 [AKF042019])
Shape
Round
Construction type
Flat
Colour
Black
Literal imprint
Test
Language of the imprint
English
Imprint ISO symbols
None
Imprint
Other
Engravable
No
Programme diameter
22 mm
Width
24 mm
Height
3 mm
Outer diameter
22.5 mm
Suitable for push button
Yes
Suitable for illuminated push buttons
No
Suitable for indicator light
No
Suitable for mushroom head push button
No
Suitable for signalling lamp
No
Suitable for selector switch
No

ETIM for 218201 Low-voltage industrial controls and switchgear (EC000621)
Feature Name Feature Value
Shape (EF000051) Round
Construction type (EF000767) Flat
Colour (EF000007) Black
Literal imprint (EF015918) Test
Language of the imprint (EF015922) English
Imprint ISO symbols (EF006094) None
Imprint (EF000131) Other
Engravable (EF005877) No
Programme diameter (EF001539) 22 mm
Width (EF000008) 24 mm
Height (EF000040) 3 mm
Outer diameter (EF000015) 22.5 mm
Suitable for push button (EF007244) Yes
Suitable for illuminated push buttons (EF007254) No
Suitable for indicator light (EF007255) No
Suitable for mushroom head push button (EF007257) No
Suitable for signalling lamp (EF007261) No
Suitable for selector switch (EF007263) No
