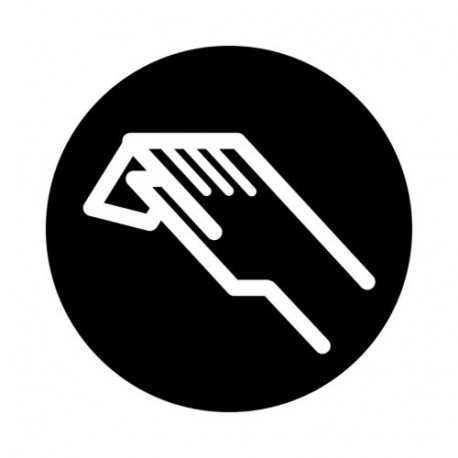

M22-XD-S-X9 218175 Y7-218175 EATON ELECTRIC Button plate, flat black, symbol manual operation
M22-XD-S-X9
218175
Y7-218175
EATON - MOELLER
10 Pcs.
Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
M22-XD-S-X9 218175 Y7-218175 EATON ELECTRIC Button plate, flat black, symbol manual operation is an aluminum-finished black actuator insert displaying a standard hand symbol for manual system control. Such operator inserts are critical in industrial automation for designating manual override functions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Shape (EF000051): Round
- Construction type (EF000767): Flat
- Colour (EF000007): Black
- Imprint ISO symbols (EF006094): Symbol "Hand"
- Engravable (EF005877): No
- Programme diameter (EF001539): 22 mm
- Width (EF000008): 24 mm
- Height (EF000040): 3 mm
- Outer diameter (EF000015): 22.5 mm
- Suitable for push button (EF007244): Yes
- Suitable for illuminated push buttons (EF007254): No
- Suitable for indicator light (EF007255): No
- Suitable for mushroom head push button (EF007257): No
- Suitable for signalling lamp (EF007261): No
- Suitable for selector switch (EF007263): No
More info
▲General specifications
Features & Functions
Individual inscription possible: > 5 characters: letter height 3 mm
