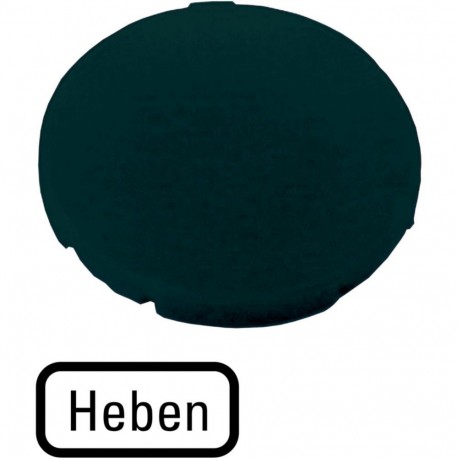

EATON - MOELLER M22-XD-S-D17 M22-XD-S-D17 218192 Y7-218192 EATON ELECTRIC Button plate, flat black, raised View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XD-S-D17 218192 Y7-218192 EATON ELECTRIC Button plate, flat black, raised

M22-XD-S-D17

218192

Y7-218192

EATON - MOELLER

10 Pcs.

Button plate, flat black, raised M22-XD-S-D17 Eaton Moeller® series M22 Button plate, flat black, raised Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Inscription: Heben, Selection to: Text, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller M22-XD-S-D17 button plate provides specialized German-language labeling for industrial control actuators, facilitating compliant machine operation in manufacturing facilities. Such flat caps snap easily onto standard push buttons to maintain clear visual management on control desks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): Flat
  • Colour (EF000007): Black
  • Literal imprint (EF015918): Raise
  • Language of the imprint (EF015922): German
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 3 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): Yes
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): No
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218192
Model Code
M22-XD-S-D17
EAN
4015082181925
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
