EATON - MOELLER M22-XD-S-X2 M22-XD-S-X2 218169 Y7-218169 EATON ELECTRIC Button plate, flat black, II View larger
Images are for illustrative purposes only. Please refer to data sheet for details

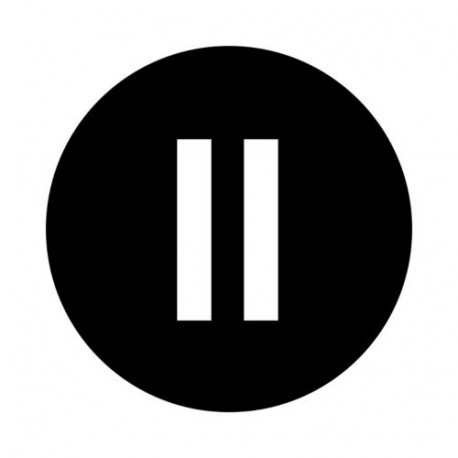

M22-XD-S-X2 218169 Y7-218169 EATON ELECTRIC Button plate, flat black, II

M22-XD-S-X2

218169

Y7-218169

EATON - MOELLER

1 Pcs.

Button plate, flat black, II M22-XD-S-X2 Eaton Moeller® series M22 Button plate, flat black, II Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Name: START, Selection to: Symbol, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-XD-S-X2 button plate serves as an interchangeable marking cap designed for round industrial pushbuttons. Technicians use these components on control panels to designate secondary operational states or multi-speed settings with ISO symbols. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): Flat
  • Colour (EF000007): Black
  • Imprint ISO symbols (EF006094): Symbol " II "
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 3 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): Yes
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): No
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218169
Model Code
M22-XD-S-X2
EAN
4015082181697
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
