EATON - MOELLER M22-XD-S-X4 M22-XD-S-X4 218170 Y7-218170 EATON ELECTRIC Button plate, flat black, + View larger
Images are for illustrative purposes only. Please refer to data sheet for details

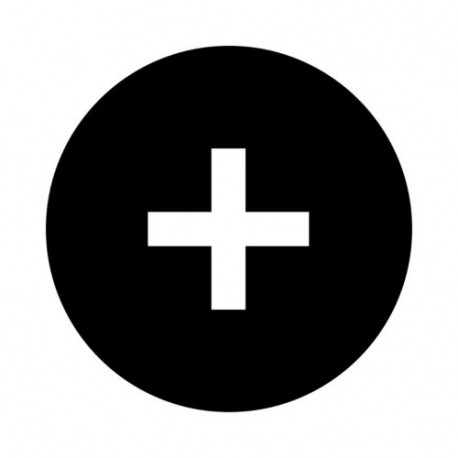

M22-XD-S-X4 218170 Y7-218170 EATON ELECTRIC Button plate, flat black, +

M22-XD-S-X4

218170

Y7-218170

EATON - MOELLER

10 Pcs.

Button plate, flat black, + M22-XD-S-X4 Eaton Moeller® series M22 Button plate, flat black, + Button plate for push-button, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Name: Increase, Selection to: Symbol, For use with: M22(S)-D-X, M22(S)-DR-X, M22-DG-X, M30C-FD-X, M30C-FDR-X, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller flat black button plate with plus symbol (M22-XD-S-X4) provides a standard operator legend cap for 22 mm push button switches, typically used to indicate increment or increase functions on industrial control systems. These durable inserts snap securely into place on compatible actuators.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Construction type (EF000767): Flat
  • Colour (EF000007): Black
  • Imprint ISO symbols (EF006094): Symbol " + "
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 22 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 3 mm
  • Outer diameter (EF000015): 22.5 mm
  • Suitable for push button (EF007244): Yes
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): No
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button plate
Catalog Number
218170
Model Code
M22-XD-S-X4
EAN
4015082181703
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
