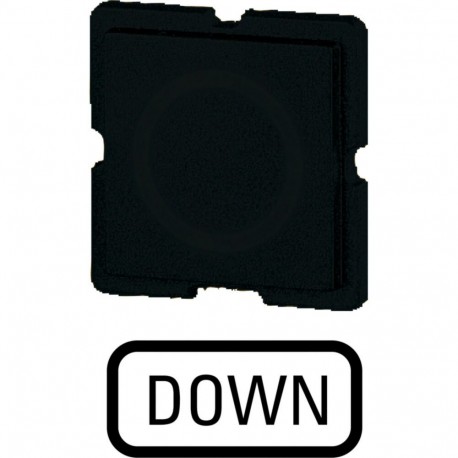

273TQ25 091152 Y7-91152 EATON ELECTRIC Button plate, black, DOWN

273TQ25

091152

Y7-91152

EATON - MOELLER

1 Pcs.

Button plate, black, DOWN Inscription Indicator Plate: Black DOWN for RMQ16 25x25 Eaton Moeller® series RMQ16 Button plate for push-button, Inscription: DOWN, 25 x 25 Button plate for push-button, Product range: Accessories, Single unit, Inscription: DOWN, Connection to SmartWire-DT: no

Automation > Legend plate for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller 273TQ25 button plate serves as a replaceable interface cap for control devices, providing distinct visual labeling on industrial switchboards and operator consoles. These components mount onto compatible actuators to clearly denote specific control functions within automated machinery setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Square
  • Construction type (EF000767): Flat
  • Colour (EF000007): Black
  • Literal imprint (EF015918): Down
  • Language of the imprint (EF015922): English
  • Engravable (EF005877): No
  • Programme diameter (EF001539): 16 mm
  • Width (EF000008): 19 mm
  • Height (EF000040): 19 mm
  • Outer diameter (EF000015): 0 mm
  • Suitable for push button (EF007244): Yes
  • Suitable for illuminated push buttons (EF007254): No
  • Suitable for indicator light (EF007255): No
  • Suitable for mushroom head push button (EF007257): No
  • Suitable for signalling lamp (EF007261): No
  • Suitable for selector switch (EF007263): No

More info

▲

General specifications

Product Name
Eaton Moeller® series RMQ16 Accessory Button plate
Catalog Number
091152
Model Code
273TQ25
EAN
4015080911524
Product Length/Depth
3 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
1.83 g
Certifications
UL/CSA certification not required

Features & Functions

Color
Black
Inscription
DOWN
Shape
Square

General

Product Category
Accessories
Size
25 × 25 mm
Suitable for
Push button

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
