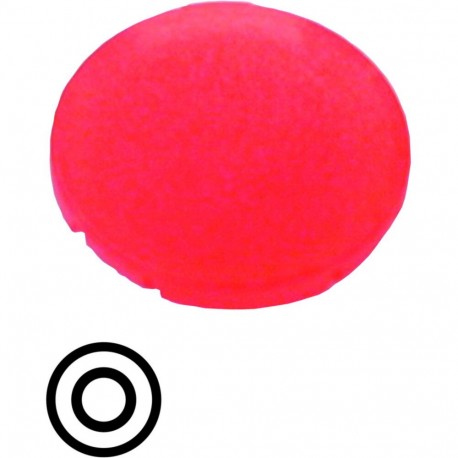

EATON - MOELLER M22-XDL-R-X0 M22-XDL-R-X0 218159 Y7-218159 EATON ELECTRIC Button lens, flat red View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDL-R-X0 218159 Y7-218159 EATON ELECTRIC Button lens, flat red

M22-XDL-R-X0

218159

Y7-218159

EATON - MOELLER

10 Pcs.

Button lens, flat red M22-XDL-R-X0 Eaton Moeller® series M22 Button lens, flat red Button lens, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Name: STOP, Selection to: Symbol, For use with: M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, M30C-FDRL-X, Connection to SmartWire-DT: no

Automation > Hood/lens for circuit control devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller M22-XDL-R-X0 button lens, flat red provides a reliable operator contact surface for machinery control stations and emergency stop circuits. Flat button lenses snap directly onto compatible actuator blocks to build custom control interfaces for industrial installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour lens (EF000207): Red
  • Shape of lens (EF001371): Round
  • Construction type (EF000767): Flat
  • Labelled (EF001537): No
  • Built-in diameter (EF000943): 22.5 mm
  • Diameter (EF000551): 22.2 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 3 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button lens
Catalog Number
218159
Model Code
M22-XDL-R-X0
EAN
4015082181598
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
CE

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
