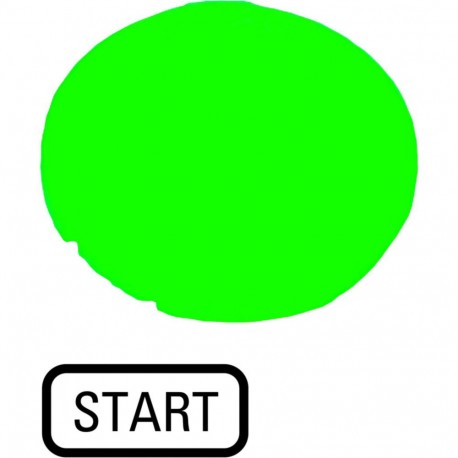

EATON - MOELLER M22-XDL-G-GB1 M22-XDL-G-GB1 218328 Y7-218328 EATON ELECTRIC Button lens, flat green, START View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDL-G-GB1 218328 Y7-218328 EATON ELECTRIC Button lens, flat green, START

M22-XDL-G-GB1

218328

Y7-218328

EATON - MOELLER

10 Pcs.

Button lens, flat green, START M22-XDL-G-GB1 Eaton Moeller® series M22 Button lens, flat green, START Button lens, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Inscription: START, Selection to: Text, For use with: M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, M30C-FDRL-X, Connection to SmartWire-DT: no

Automation > Hood/lens for circuit control devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller button lens, flat green, START (part number M22-XDL-G-GB1) is an operator interface component mounted on control panels to provide clear visual feedback and physical actuation for machine start functions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour lens (EF000207): Green
  • Shape of lens (EF001371): Round
  • Construction type (EF000767): Flat
  • Labelled (EF001537): No
  • Built-in diameter (EF000943): 22.5 mm
  • Diameter (EF000551): 22.2 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 3 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button lens
Catalog Number
218328
Model Code
M22-XDL-G-GB1
EAN
4015082183288
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
CE
