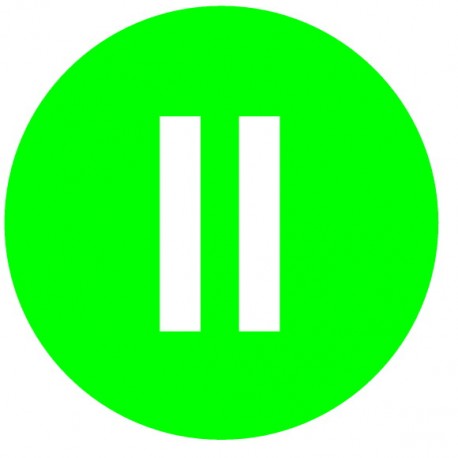

EATON - MOELLER M22-XDL-G-X2 M22-XDL-G-X2 218297 Y7-218297 EATON ELECTRIC Button lens, flat green, II View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDL-G-X2 218297 Y7-218297 EATON ELECTRIC Button lens, flat green, II

M22-XDL-G-X2

218297

Y7-218297

EATON - MOELLER

1 Pcs.

Button lens, flat green, II M22-XDL-G-X2 Eaton Moeller® series M22 Button lens, flat green, II Button lens, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Name: START, Selection to: Symbol, For use with: M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, M30C-FDRL-X, Connection to SmartWire-DT: no

Automation > Hood/lens for circuit control devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-XDL-G-X2 button lens, flat green, II provides a smooth round optical cap for control and signaling pushbuttons in electrical switchboards. These unlabelled actuator caps snap onto standard modular switch bases to help operators interact with industrial machinery safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour lens (EF000207): Green
  • Shape of lens (EF001371): Round
  • Construction type (EF000767): Flat
  • Labelled (EF001537): No
  • Built-in diameter (EF000943): 22.5 mm
  • Diameter (EF000551): 22.2 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 3 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button lens
Catalog Number
218297
Model Code
M22-XDL-G-X2
EAN
4015082182977
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required
