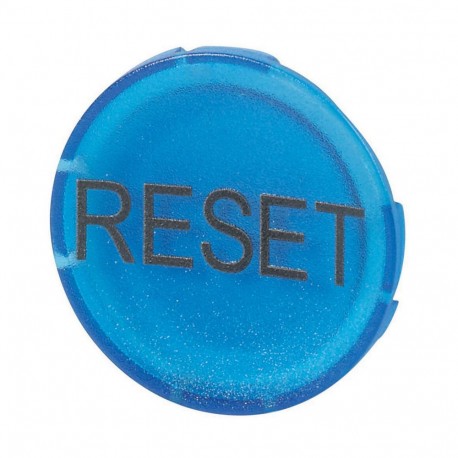

EATON - MOELLER M22-XDL-B-GB14 M22-XDL-B-GB14 218336 Y7-218336 EATON ELECTRIC Button lens, flat blue, RESET View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XDL-B-GB14 218336 Y7-218336 EATON ELECTRIC Button lens, flat blue, RESET

M22-XDL-B-GB14

218336

Y7-218336

EATON - MOELLER

10 Pcs.

Button lens, flat blue, RESET M22-XDL-B-GB14 Eaton Moeller® series M22 Button lens, flat blue, RESET Button lens, Product range: Accessories, Single unit, Description: 5 characters: letter height 5 mm, > 5 characters: letter height 3 mm, Design: Flush, Inscription: RESET, Selection to: Text, For use with: M22(S)-DL-X, M22(S)-DRL-X, M22S-DGL-X, M30C-FDL-X, M30C-FDRL-X, Connection to SmartWire-DT: no

Automation > Hood/lens for circuit control devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-XDL-B-GB14 button lens, flat blue, reset is an operator cap intended for industrial pushbuttons to facilitate manual command inputs and system resets on control panels. These modular device caps snap directly onto compatible actuator bases to maintain clean, color-coded functional layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour lens (EF000207): Blue
  • Shape of lens (EF001371): Round
  • Construction type (EF000767): Flat
  • Labelled (EF001537): No
  • Built-in diameter (EF000943): 22.5 mm
  • Diameter (EF000551): 22.2 mm
  • Width (EF000008): 24 mm
  • Height (EF000040): 3 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Button lens
Catalog Number
218336
Model Code
M22-XDL-B-GB14
EAN
4015082183363
Product Length/Depth
24 mm
Product Height
3 mm
Product Width
24 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
