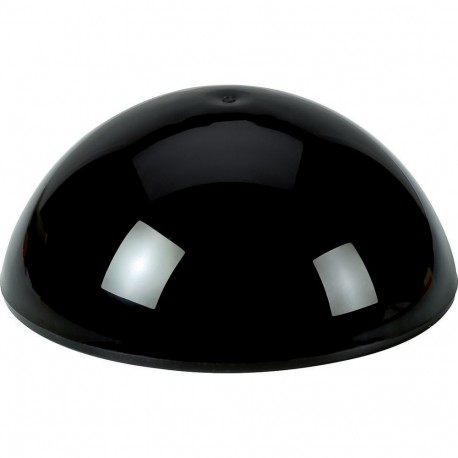

EATON - MOELLER FAK-P-S FAK-P-S 229751 Y7-229751 EATON ELECTRIC 229751 FAK-P-S View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FAK-P-S 229751 Y7-229751 EATON ELECTRIC 229751 FAK-P-S

FAK-P-S

229751

Y7-229751

EATON - MOELLER

1 Pcs.

229751 FAK-P-S FAK-P-S Eaton Moeller® series FAK Button, black FAK button separate as spare part or for personal coloring. Matches all FAK´s without visible screws on the button. When closed, fulfils the status of the degree of protection IP67 and IP69K

Automation > Foot and palm switch enclosure base
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series FAK Accessory Mushroom head
Catalog Number
229751
Model Code
FAK-P-S
EAN
4015082297510
Product Length/Depth
95 mm
Product Height
40 mm
Product Width
95 mm
Product Weight
0.038 kg
Compliances
CE

Features & Functions

Color
Black

General

Connection to SmartWire-DT
No
Degree of protection
IP Other
NEMA Other
Product category
Accessories

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 229751 Low-voltage industrial controls and switchgear (EC002031)
Feature Name Feature Value
Colour (EF000007) Black
Degree of protection (IP) (EF005474) Other
Degree of protection (NEMA) (EF011959) Other
