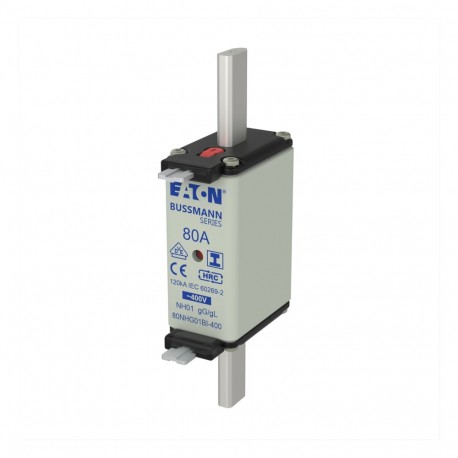

EATON - MOELLER NH FUSE 80A 400V GG SIZE 01 NH FUSE 80A 400V GG SIZE 01 80NHG01BI-400 EATON ELECTRIC cartridge fuse, BT 80 A, AC 400 V, NH01, gL/gG, IEC.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 80A 400V GG SIZE 01 80NHG01BI-400 EATON ELECTRIC cartridge fuse, BT 80 A, AC 400 V, NH01, gL/gG, IEC..

NH FUSE 80A 400V GG SIZE 01

80NHG01BI400

EATON - MOELLER

3 Pcs.

cartridge fuse, BT 80 A, AC 400 V, NH01, gL/gG, IEC, indicator double, terminals, insulated metal NH FUSE 80A 400V GG SIZE 01 NH FUSE 80A 400V GG SIZE 01 - Fuse-link, low voltage, 80 A, AC 400 V, 120 kA, NH01, gL/gG, IEC, dual indicator, insulated gripping lugs Fuse, fuse-link, low voltage, 80 A, AC 400 V, NH01, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial distribution networks use components like this Eaton Moeller NH FUSE 80A 400V GG SIZE 01 cartridge fuse to safeguard branch circuits and equipment from excessive thermal stress and electrical faults. These devices provide dependable overcurrent protection in demanding facility layouts.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH01
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 80 A
  • Rated voltage AC (EF007682): 400 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): Yes
  • Power loss at rated current (EF012389): 5.6 W

More info

▲
Fuse-link, low voltage, 80 A, AC 400 V, 120 kA, NH01, gL/gG, IEC, dual indicator, insulated gripping lugs
Fuse, fuse-link, low voltage, 80 A, AC 400 V, NH01, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Delivery program

Product range
Fuse
Basic function
Fuse-link
Field of application
low voltage
Rated current [I]
80 A
Rated voltage
AC 400 V
Construction size
NH01
Utilization category
gL/gG
Status indicator
dual indicator
Description
insulated gripping lugs
Breaking Capacity
120 kA
usable for size/applications
industrial
Standard/Approval
IEC
Shape
square body with knife blade contacts
Standards/Regulations
IEC 60269-2 fuse system A
DIN 43620
VDE 0636-2

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
Other
Rated current
80 A
Rated voltage
400 V
Voltage type
AC
Rated switching capacity
120 kA
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
Yes
