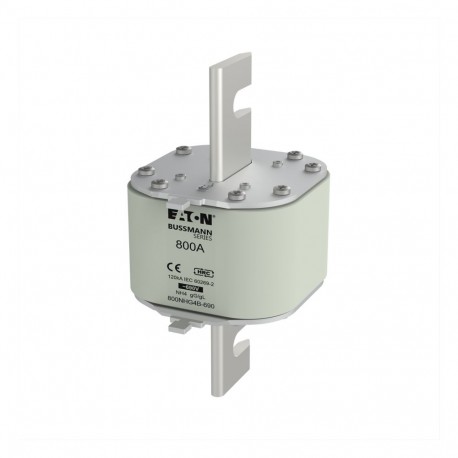

NH FUSE 800A 690V GG/GL SIZE 4 800NHG4B-690 EATON ELECTRIC Fuse-link, LV, 1000 A, AC 500 V, NH4, gL/gG, IEC,..
NH FUSE 800A 690V GG/GL SIZE 4
800NHG4B690
800NHG4B-690
EATON - MOELLER
1 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for high-amperage applications, the Eaton Moeller NH fuse-link handles heavy power distribution loads while providing reliable circuit protection. Heavy industrial plants rely on this category of fuse to protect large transformers and main busbars. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH4
- Voltage type (EF000187): AC
- Rated current (EF000227): 800 A
- Rated voltage AC (EF007682): 690 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Top fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 61 W
More info
▲General specifications
RoHS Compliant
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
