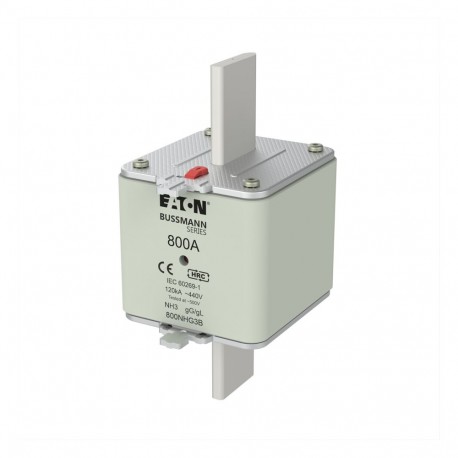

EATON - MOELLER NH FUSE 800A 440V GG/GL SIZE 3 NH FUSE 800A 440V GG/GL SIZE 3 800NHG3B EATON ELECTRIC Fuse-link, LV, 425 A, AC 500 V, NH3, gL/gG, IEC, dual.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 800A 440V GG/GL SIZE 3 800NHG3B EATON ELECTRIC Fuse-link, LV, 425 A, AC 500 V, NH3, gL/gG, IEC, dual..

NH FUSE 800A 440V GG/GL SIZE 3

800NHG3B

800NHG3B

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 425 A, AC 500 V, NH3, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 800A 440V GG/GL SIZE 3 Fuse, Fuse-link, low voltage, 800 A, AC 440 V, NH3, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy industrial switchgear utilizes large-format components such as the NH FUSE 800A 440V GG/GL SIZE 3 from Eaton Moeller to clear massive fault currents and prevent catastrophic electrical fires. This NH3 fuse is built for high-capacity main distribution boards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH3
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 800 A
  • Rated voltage AC (EF007682): 440 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 59 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
800NHG3B
Model Code
NH FUSE 800A 440V GG/GL SIZE 3
EAN
5027590490313
UPC
051712688147
Product Length/Depth
150 mm
Product Height
86 mm
Product Width
72 mm
Product Weight
1068.667 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
800 A
Voltage rating
440 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH3
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD3-D Single pole NH Fuse base
TD3-D Tripe pole NH Fuse base
Microswitch 170H0235
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
